Premium Short Rail & Trolley Rail System Solutions for Port Cranes
As a leading supplier of trolley short rail systems, Glory Rail offers durable trolley rail system components and
precision-manufactured crane short rail solutions designed to maximize uptime and enhance
load-carrying capacity for your crane trolleys.
ISO 9001 Certified | 20+ Years Experience | 50+ STS Cranes Equipped
What is Trolley Rail System?
On a ship-to-shore (STS) crane, the crane trolley moves continuously back and forth between the main girder and the crossbeam to load and unload containers. Within the entire track infrastructure, the most critical and highest-maintenance area is the boom hinge joint—since the crane’s main girder needs to be raised, the track must be physically disconnected at this point.
Glory Rail specializes in manufacturing high-end STS crane short rail systems. These heavy-duty rail sections span joint gaps, absorb massive wheel impacts, and ensure a smooth transition. As a leading global supplier of trolley short rail systems, we offer tailor-made trolley rail systems that perfectly match your specific terminal operating frequency and budget constraints.
Key Features of Short Rails
High-Strength Hardened Material (HB 260-300): Our short-rail solutions are manufactured from high-quality U71Mn high-strength carbon steel and undergo advanced heat treatment processes to achieve an optimal surface hardness of HB 260–300. This robust microstructure ensures excellent wear resistance and an exceptionally long service life under the severe dynamic loads of continuous crane trolley operation.
Precision Machining & End Profiling: We offer a comprehensive range of A75 and A100 profile rails, as well as heavy-duty full-web short rails. Each batch of machined rails undergoes precision end profiling and CNC surface finishing to ensure tight tolerances (±0.5 mm), guaranteeing seamless integration with existing trolley rail systems.
Integrated Damping & Full Accessories: Our Crane Short Rail Solutions come equipped with a complete accessory package, including vulcanized rubber inserts and specialized rail clamps. This self-damping technology effectively addresses the issue of how to reduce crane trolley vibration by absorbing 80% of the impact, while also enabling flexible operation of the boom hinge joint at the boom and girder.
Tailor-Made Customizability (±5mm Adjustability): As a professional supplier of trolley short rail systems, Glory Rail offers tailor-made trolley rail system options customized to your STS crane rail specifications. All systems feature post-installation lateral adjustability (±5 mm), helping you eliminate downtime associated with short rail replacement and ensure perfect alignment.
One-Stop Rail System Accessories
As your one-stop supplier of trolley short rail systems, Glory Rail not only offers high-quality short rail products but also a comprehensive range of precision-engineered components. Our complete set of trolley rail system components ensures seamless integration, superior performance, and extended service life for your STS crane rails.
ZPMC Rail Clips
Our professional ZPMC Y7B+3 trolley rail clips feature enhanced clamping force and improved vertical contact, minimizing the transmission of shock and vibration. This advanced rail clamping system ensures excellent force transmission between the short rail and the fixed components, which is critical for high-frequency crane trolley operation.
Steel Sole Plates
Our precision-milled steel base plates provide a solid foundation for Crane short rail solutions. Each base plate is custom-machined to exact thickness specifications, ensuring perfect height alignment and load distribution across your boom and girder structures. In the event of settlement, we can remill the base plates to maintain a smooth gradient.
Fix Blocks & End Stoppers
Our heavy-duty mounting blocks and end stops prevent lateral displacement in STS crane short rail systems and provide safe travel limits for crane trolley operation. Manufactured from high-strength steel and precision-machined, these components are capable of withstanding extreme dynamic loads in harsh port environments.
Short Rail End Piece
To prevent edge spalling under heavy loads, our machined rail end connectors feature a precision-milled L-type profile. This design enhances the strength of the short rail ends and creates a mechanical interlock with the mounting blocks, ensuring a smooth transition for the crane trolley.
Need a Complete Trolley Rail System?
Contact us for a comprehensive quote that includes all short rail components, accessories, and installation hardware. We offer ready-to-install kits customized to the specifications of your gantry crane tracks.
Why Choose Glory Rail
Factory-Direct Customization
We not only offer standard sizes, but also design each tailor-made trolley rail system based on your exact boom and girder dimensions and load requirements.
One-Stop Procurement
In addition to short rails, we provide complete trolley rail systems, including rail clamps, shims, and end stops, ensuring perfect compatibility.
Strict Quality Control
Every batch of A75 and A100 profile rails undergoes ultrasonic testing and hardness verification to ensure compliance with DIN and FEM standards.
Global Certifications
All short rail and accessories undergo rigorous testing. With ISO 9001, TÜV SÜD, and CE certifications, our short rail solutions are fully compliant with DIN and FEM standards for ports worldwide.

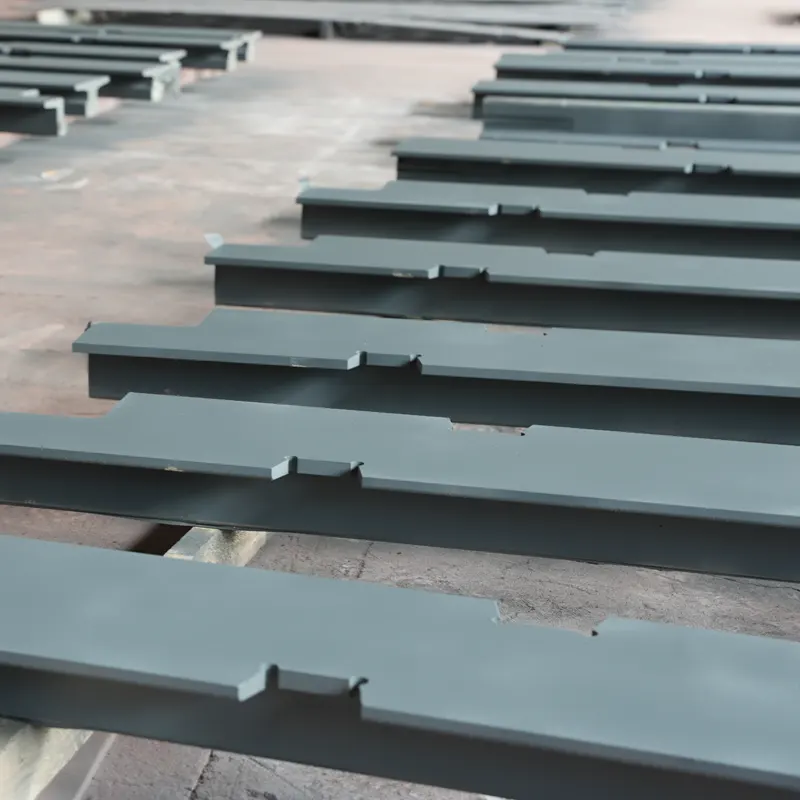

Premium Finished Short Rails
Every container terminal faces unique operational challenges. At Glory Rail, we not only supply standard steel products but also provide custom crane short rail solutions based on your precise drawings and tolerance requirements.
Our in-house machining shop has the capability to handle complex geometric modifications, ensuring seamless integration into your existing trolley rail system.
Avoid costly operational delays caused by poor alignment. Partner with Glory Rail to transform your complex geometric challenges into high-quality, precision-finished short rails that are ready for on-site installation. Contact our experts today to discuss your next dock upgrade.

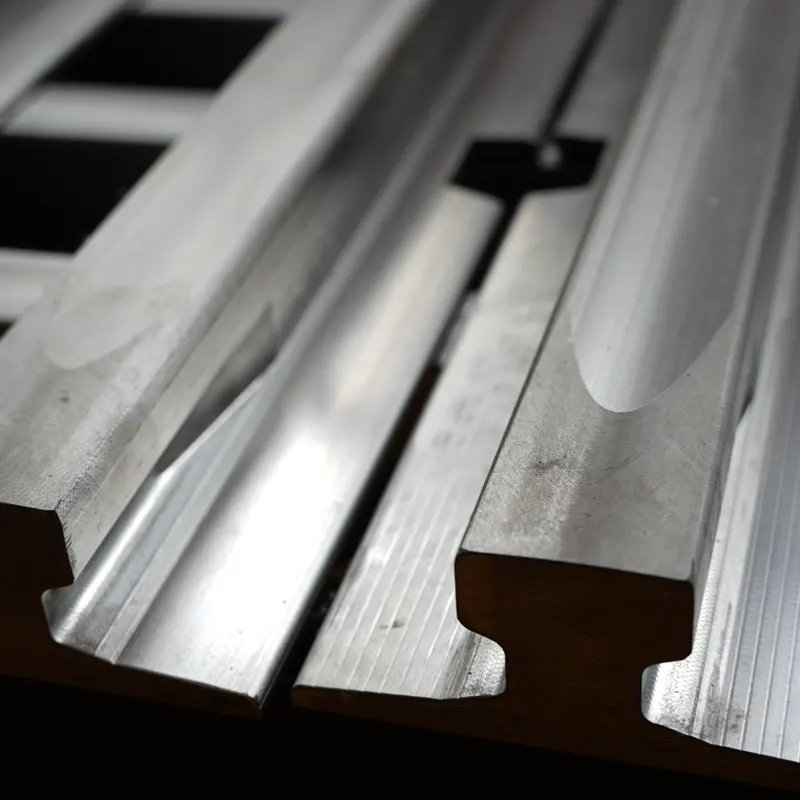

Custom Trolley Rail Systems
As a leading supplier of trolley short rail systems, Glory Rail understands that every port crane has its own unique structural requirements. We not only offer standard, off-the-shelf products, but also design comprehensive crane short rail solutions tailored to your specific boom and girder dimensions, load capacity, and operating environment.
Profile & Dimensional Customization
At Glory Rail, we understand that no two cranes are exactly alike due to long-term wear and tear and varying engineering specifications. We specialize in designing and manufacturing custom lengths, tapered ends, and unique longitudinal cross-sections for DIN 536 A-Series rails as well as heavy-duty full-web short rails. Using high-precision measurement and cutting technologies, we ensure that each short rail section fits perfectly with your existing trolley track system, guaranteeing a smooth transition for the wheels without harsh jolts.
Complex Hole Patterns & End Profiling
Secure anchoring is the cornerstone of any reliable STS crane rail system. Our in-house machining shop utilizes advanced CNC equipment to drill complex, non-standard hole patterns and mill precise 45-degree chamfers or interlocking end joints. These specialized boom hinge joint rail solutions are custom-engineered to align perfectly with the specific intersection of your crane’s boom and girder, distributing heavy structural stresses and preventing rail bolts from loosening during high-speed operation.
Damping & Accessory Integration
Modern port terminals require extremely high operating speeds and continuous uptime. To meet this demand, we have directly integrated advanced vibration-damping technology into our short rail solutions. By pairing our machined rails with highly durable vulcanized rubber inserts and heavy-duty fix blocks and end-stoppers, we offer a complete system that perfectly addresses the industry’s key challenge of how to reduce crane trolley vibration. This integrated approach cushions severe dynamic impacts, protects the crane trolley cab, and extends the service life of your terminal infrastructure.
From Drawing to Deployment: Our Engineering Workflow
As a leading supplier of short-rail systems for small cranes, Glory Rail understands that every port crane has its own unique structural requirements. We not only offer standard, off-the-shelf products, but also design comprehensive short-rail solutions tailored to your specific boom and main girder dimensions, load-bearing capacity, and operating environment.
Technical Analysis
Our engineers review your CAD drawings and the specifications for the boom and girder to determine the final design of the custom trolley track system.
CNC Precision Machining
Raw materials are cut, drilled, and formed into machined rails with strict dimensional control.
Pre-Assembly & QC
Install the fix-blocks and rail clamps. Each short rail has undergone ultrasonic testing and dimensional verification.
Global Delivery
Products are securely packaged and shipped as a complete trolley track system kit, ready for quick “plug-and-play” installation.
Ready to Engineer Your Custom Solution?
Do you have a complex boom and main girder layout or specific wear challenges? Send us your CAD drawings or technical specifications right away. As your dedicated supplier of trolley short-rail systems, we’ll provide a comprehensive engineering solution and a highly competitive quote within 24 hours.
Solving Your Port Maintenance Challenges
We use high-grade hardened steel (such as high-quality U71Mn or alloy steel) suitable for A75 and A100 profile rails. The rails we manufacture undergo rigorous induction hardening at the ends, resulting in a surface hardness of 300–380 HB. This structural reinforcement enables the short rails to withstand the severe, repetitive dynamic impacts generated daily when heavy crane trolleys pass over the boom hinge joints.
Vibration is the primary cause of wear on rails and wheels. At Glory Rail, we address this issue by implementing comprehensive Crane short rail solutions that include precision-machined rail ends and high-quality vulcanized rubber inserts. This self-damping design reduces vibration by up to 30% and absorbs 80% of impacts, ensuring smoother operation of the Crane trolley.
Boom hinge joints are subject to significant bending. Our specialized boom hinge joint rail solutions feature short, modular sections with flexible joints that can bend with the boom without cracking. This flexibility is critical for preventing rail fractures and ensuring the longevity of your STS crane short rail systems.
We help you eliminate downtime associated with short rail replacements by providing pre-assembled, tailor-made trolley rail system modules. Our machined rails are pre-drilled and equipped with rail clamps and shims before leaving the factory, allowing for quick “plug-and-play” installation on-site. This significantly reduces maintenance time and keeps your STS crane rails running continuously.
Of course. As a leading global supplier of trolley short rail systems, we excel at upgrading aging port cranes. We can reverse-engineer and manufacture custom machined rails based on your on-site dimensions, specific wear patterns, or legacy CAD drawings. Whether your existing trolley rail system uses standard European DIN rails, U.S. specifications, or unique regional rails, we can deliver a perfectly integrated, tailor-made trolley rail system.
The full web short rail maximizes structural rigidity and vertical load-bearing capacity, making it ideal for ultra-heavy-duty or high-speed port operations with significant wheel loads. On the other hand, if your primary operational concerns are structural fatigue, cab vibration, or excessive noise, our short rail with vulcanized rubber inserts is the ideal choice for boom hinge joint rail solutions. It is specifically designed to reduce crane trolley vibration and absorb severe dynamic impacts.
Perfect track alignment between the main girder and the crossbeam is critical to operational safety. Glory Rail’s tailor-made trolley rail system is equipped with specialized heavy-duty base plates and an improved clamping system, offering lateral adjustability of up to +/- 5 millimeters. This engineering design allows port maintenance teams to make fine adjustments during installation, ensuring a completely smooth, bump-free path for the crane trolley and helping to eliminate downtime associated with short rail replacements.
We help you eliminate downtime associated with short rail replacements by providing pre-assembled, tailor-made trolley rail system modules. Our machined rails are pre-drilled and equipped with rail clamps and shims before leaving the factory, allowing for quick “plug-and-play” installation on-site. This significantly reduces maintenance time and keeps your STS crane rails running continuously.
