Crane Wheel Assembly
Wheel Assemblies for Trolleys , Overhead & Gantry Cranes
Material:
High-quality 42CrMo forged crane wheel assembly and 65Mn forged steel
Heat Treatment:
Medium-frequency quenched crane wheel assembly, with tread hardness reaching HRC 45–55
Services:
We provide comprehensive OEM/ODM services for crane wheel assemblies and fast global delivery
What is a Crane Wheel Assembly?
The crane wheel assembly is the core load-bearing and power transmission module of a crane’s traveling mechanism. Unlike individual wheels, a complete crane wheel set integrates the wheel forging, wheel axle/pin shaft, roller bearings/bearing housing, and—for drive configurations—the driving gear/open gear into a pre-assembled unit. This modular design simplifies installation, maintenance, and replacement.
Main Components:
• Wheel axle / pin shaft: Transfers radial loads and torque; typically made of 42CrMo or 45# steel, quenched and tempered to HB 217–255
• Roller bearings / bearing housing: Self-aligning roller bearings (222 series) or tapered roller bearings, mounted in angular or L-shaped bearing housings
• Driving gear / open gear: 40Cr forged steel, surface induction hardened to HRC 48–55, transmits drive torque to the wheel
• Wheel forging: 42CrMo forged crane wheel assembly tread, induction hardened to a tread hardness of HRC 45–55

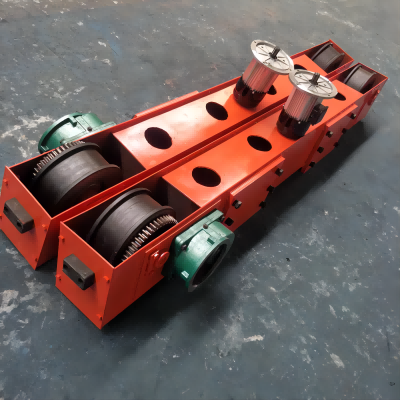

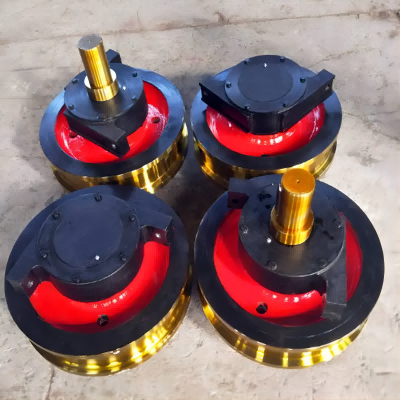

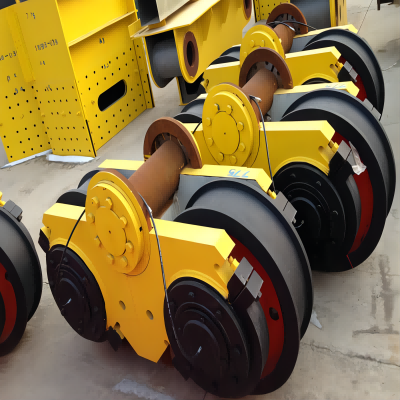

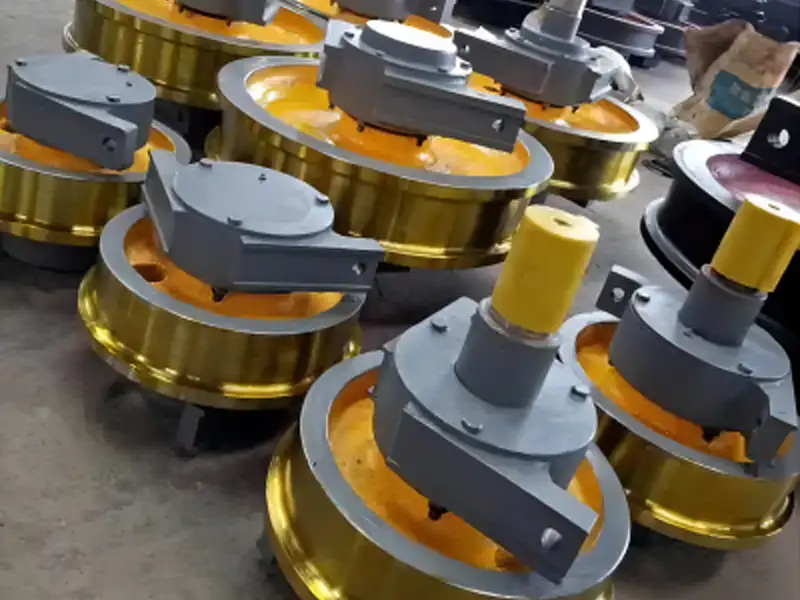

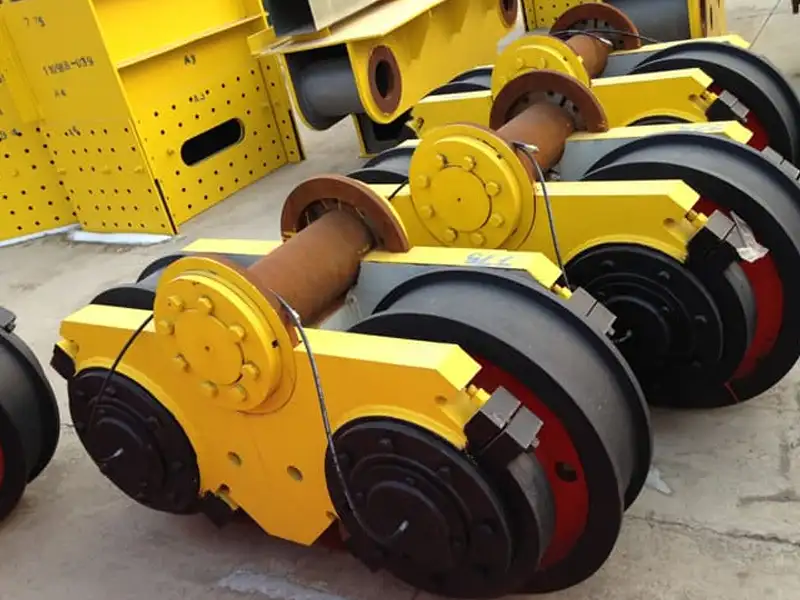

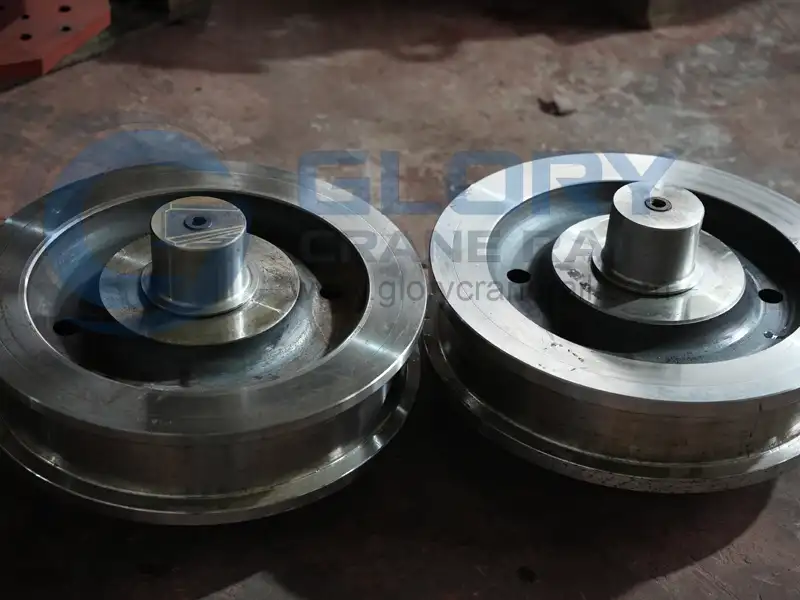

Types of Crane Wheel Assembly

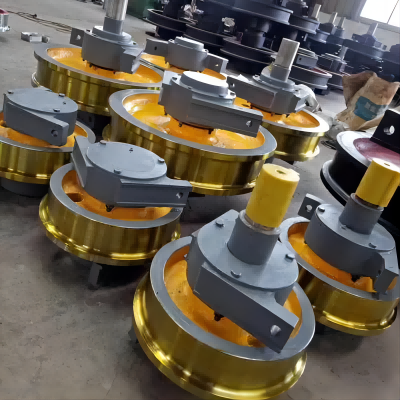

Glory Rail manufactures a full range of crane wheel assemblies to accommodate various crane configurations. In terms of flange design, we offer single-flange, double-flange, and flangeless wheels. In terms of bearing housing design, our product line includes crane wheel assemblies with corner bearing boxes and L-type bearing box designs. By drive type, we offer both driven and driving wheel assemblies.
We also manufacture custom crane wheel assemblies according to DIN standards or customer drawings. Whether you need compact European-style wheel assemblies or heavy-duty locomotive wheels, our team will recommend the optimal configuration. Please browse the product gallery below, then contact us for a customized solution.
Crane Wheel Assembly Components
Rolling Bearings
Roller bearings and bearing housings (rolling bearings/bearing housings) withstand radial and axial loads.
We use three types: self-aligning roller bearings (222 series, which self-align to compensate for installation misalignment); double-row tapered roller bearings (352 series, which handle combined loads and provide precise axial positioning); single-row tapered roller bearings (322 series, used in high-speed applications). All are made of GCr15 steel with a hardness of HRC 60–64.

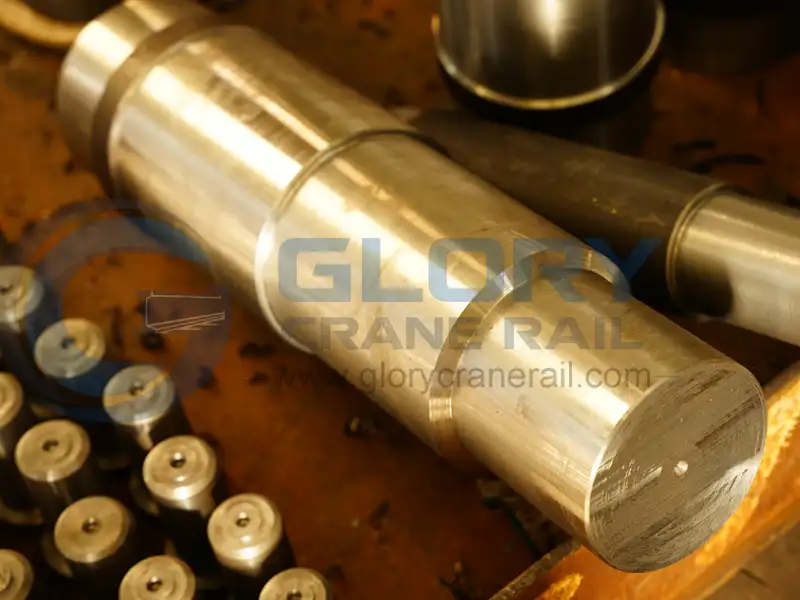

Wheel Alex

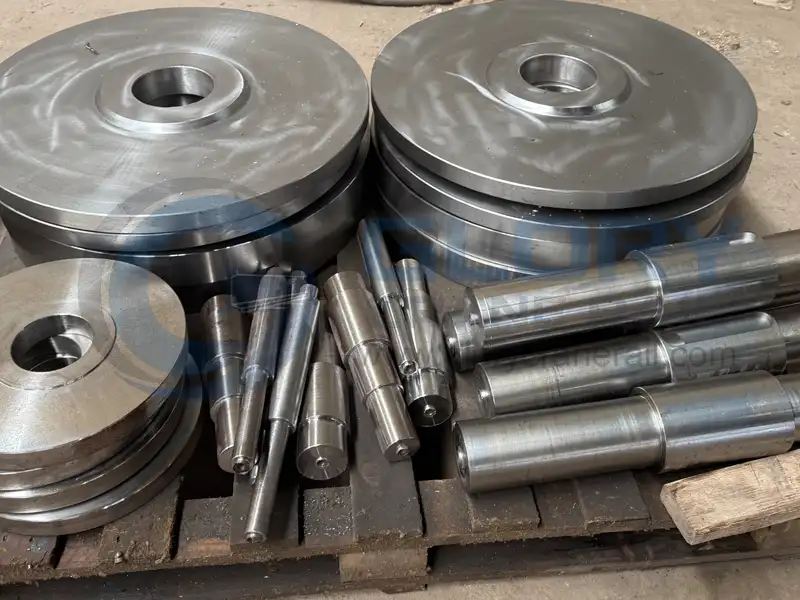

The wheel axle / pin shaft transmits radial loads to the bearing housing and, in the drive assembly, also transmits drive torque to the wheel.
Material: 42CrMo forged crane wheel assembly shaft steel, normalized to HB 217–255. Features internal lubrication holes; torque is transmitted via a keyway (DIN 6885) or spline (DIN 5480), and the threaded end is used for preloading the bearing lock nut.
Bearing Housing / Corner Bearing Box
Available in three designs: crane wheel assembly with corner bearing box (90° bolted, manually adjustable for alignment—most commonly used in Chinese standard cranes); 45° split bearing housing (two-piece design; the upper half can be removed to replace bearings without complete disassembly); L-type bearing box (compact design, used in European-style cranes). Materials: St 52-3 steel or QT500-7 ductile iron.
Seals & Accessories

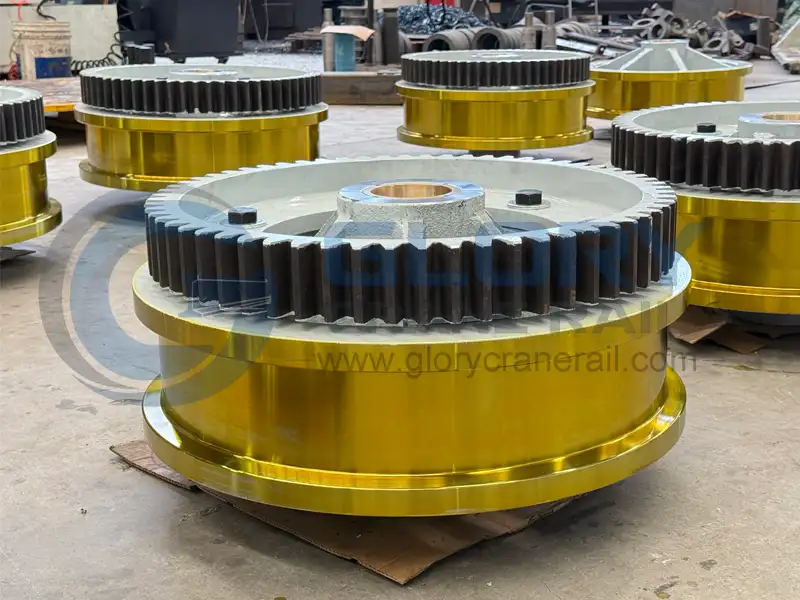

Mounted on the drive wheel set, these gears transmit torque from the reduction gearbox to the wheels.
Two configurations are available: a bolted ring gear (replaceable, 40Cr steel, surface induction hardened to HRC 48–55) or an integral gear (machined directly onto the hub, compact, 42CrMo4). Modulus m4–m20, precision DIN 3962 Class 8–9.
Blind End-Cover
A end cap is a solid, closed bearing housing end cap with no central through-hole
Material: S355J2G3 (St 52-3) steel; dimensions are identical to those of the open end cap; complies with the DIN standard for crane wheel assemblies (DIN 15084). Secured to the bearing housing using DIN 931 hex head bolts (Grade 8.8); an NBR gasket is installed between the end cap and the housing flange to enhance sealing.

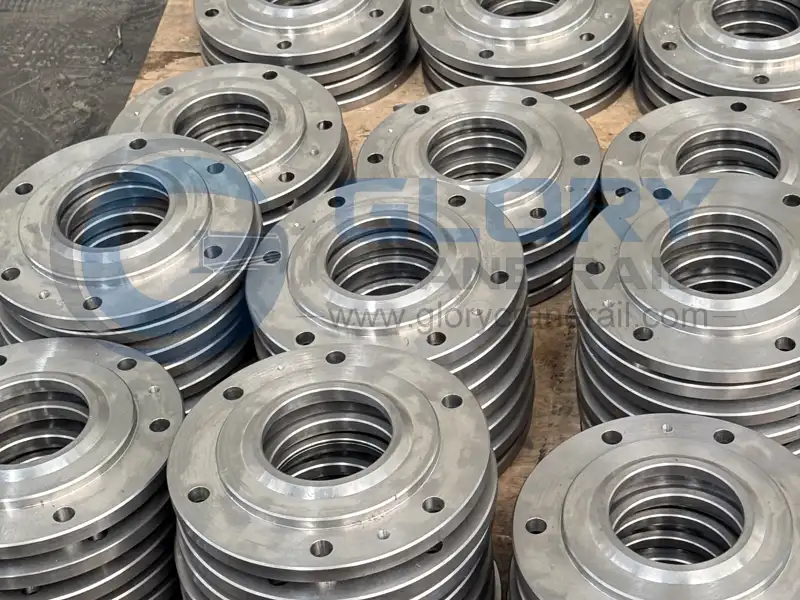

Through End Cap
A through end cap is a bearing housing end cap with a central through-hole.
Material: S355J2G3 (St 52-3) structural steel; compatible with DIN 15078/DIN 15079 standard 222 series roller bearings and bearing housings.
Need replacement components for your crane wheel assembly?
Crane Wheel Assembly Drawing & Specifications
Below is a complete table of specifications for six crane wheel assembly series, covering wheel diameters from Ø160 mm to Ø800 mm. Each series includes a crane wheel assembly drawing and dimensional specifications. All dimensions are in millimeters (mm). Please contact us if you require custom crane wheel assembly dimensions outside the standard range.
| ITEM | P/N | D1 | d | L | L1 | L2 | M | B | B1 | Ø1 | Ø2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Driven wheel Φ160 | BLW1601 | 190 | 30 | 105 | 93 | 225 | M10 | 90 | 60 | 11 | 135 |
| Driven wheel Φ160 | BLW1603 | 190 | 35 | 132 | 93 | 252 | M12 | 90 | 60 | 11 | 135 |
| Driven wheel Φ200 | BLW2003 | 230 | 40 | 142 | 117 | 287 | M16 | 210/160 | 150/100 | 12 | 165 |
| Driven wheel Φ250 | BLW2504 | 280 | 50 | 183 | 137 | 348 | M16 | 210/160 | 150/100 | 14 | 205 |
| Driven wheel Φ315 | BLW3151 | 355 | 40 | 156 | 146 | 366 | M16 | 210/160 | 150/100 | 14 | 260 |
| Driven wheel Φ315 | BLW3154 | 355 | 60 | 210 | 146 | 395 | M20 | 210/160 | 150/100 | 14 | 260 |
| Driven wheel Φ400 | BLW4005 | 440 | 90 | 313 | 180 | 535 | M24 | 210/160 | 150/100 | 18 | 320 |
| Driven wheel Φ500 | BLW5003 | 540 | 70 | 270 | 210 | 522 | M20 | 210/160 | 150/100 | 22 | 380 |
| Driven wheel Φ500 | BLW5005 | 540 | 100 | 373 | 210 | 625 | M24 | 210/160 | 150/100 | 22 | 380 |
| Driven wheel Φ630 | BLW6305 | 680 | 120 | 460 | 230 | 732 | M24 | 210/160 | 150/100 | 22 | 430 |
Table shows part of the series only — click for the full crane wheel assembly drawing (PDF/CAD) and a 24-hour quote.
| ITEM | P/N | Dimensions mm | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | D1 | B | B1 | A | L | L1 | h | S | M | d | l | d1 | ||
| Driven wheel Φ250 | L754 | 250 | 280 | 90 | 70 | 180 | 237 | 130 | 80 | 180 | 30 | 45 | 82 | M20 |
| Non-Driven wheel Φ250 | L755 | 250 | 280 | 90 | 70 | 180 | / | 130 | 80 | 180 | 30 | / | / | |
| Driven wheel Φ315 | L774 | 315 | 345 | 100 | 81 | 200 | 320 | 150 | 105 | 225 | 50 | 65 | 105 | |
| Non-Driven wheel Φ315 | L775 | 315 | 345 | 100 | 81 | 200 | / | 150 | 105 | 225 | 50 | / | / | |
| Driven wheel Φ350 | L756 | 350 | 380 | 100 | 81 | 200 | 320 | 150 | 105 | 225 | 50 | 65 | 105 | |
| Non-Driven wheel Φ350 | L757 | 350 | 380 | 100 | 81 | 200 | / | 150 | 105 | 225 | 50 | / | / | |
| Driven wheel Φ400 | L758 | 400 | 440 | 120 | 100 | 240 | 365 | 170 | 120 | 260 | 50 | 80 | 130 | |
| Non-Driven wheel Φ400 | L759 | 400 | 440 | 120 | 100 | 240 | / | 170 | 120 | 260 | 50 | / | / | |
| Driven wheel Φ500 | L762 | 500 | 540 | 130 | 110 | 270 | 365 | 195 | 140 | 300 | 50 | 80 | 130 | |
| Non-Driven wheel Φ500 | L763 | 500 | 540 | 130 | 110 | 270 | / | 195 | 140 | 300 | 50 | / | / | |
| ITEM | P/N | Dimensions mm | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | D1 | A | B | B1 | L | L1 | h | S | M | d | l | d1 | ||
| Driven wheel Φ500 | L764 | 500 | 540 | 280 | 210/160 | 150/100 | 400 | 230 | 140 | 310 | M24 | 50 | 75 | M24 |
| Non-Driven wheel Φ500 | L765 | 500 | 540 | 280 | / | / | / | / | / | / | / | |||
| Driven wheel Φ600 | L766 | 600 | 640 | 280 | 210/160 | 150/100 | 415 | 230 | 140 | 310 | M24 | 50 | 85 | |
| Non-Driven wheel Φ600 | L767 | 600 | 640 | 280 | / | / | / | / | / | / | / | |||
| Driven wheel Φ700 | L768 | 700 | 750 | 315 | 210/160 | 150/100 | 455 | 260 | 160 | 350 | M30 | 80 | 90 | M30 |
| Non-Driven wheel Φ700 | L769 | 700 | 750 | 315 | / | / | / | / | / | / | / | |||
| Driven wheel Φ800 | L770 | 800 | 850 | 365 | 210/160 | 150/100 | 500 | 300 | 190 | 410 | M30 | 90 | 95 | |
| Non-Driven wheel Φ800 | L771 | 800 | 850 | 365 | / | / | / | / | / | / | / | |||
Material & Heat Treatment
Glory Rail manufactures forged steel crane wheel assemblies using high-quality alloy steel. Our standard material is 42CrMo forged crane wheel assemblies (equivalent to AISI 4140 / DIN 42CrMo4), which are renowned for their excellent hardenability, fatigue resistance, and high-temperature strength, making them the ideal choice for heavy-duty crane wheel assemblies available for sale in the port, metallurgy, and mining sectors.
| Working Condition | Duty Class | Recommended Material | Tread Hardness |
|---|---|---|---|
| Light duty | A1–A3 | 60# / 65# steel | HB 300–380 |
| Medium duty | A4–A6 | 65Mn / 42CrMo | HRC 45–50 |
| Heavy duty / impact | A7–A8 | 42CrMo / 40CrNi2Mo | HRC 50–55 |
| Extreme heavy duty | — | 42CrMo4 (deep hardened) | HRC 48–54, depth ≥10mm |
Each wheel undergoes a heat-treated/medium-frequency quenched crane wheel assembly process: first, the core is subjected to quenching and tempering, followed by medium-frequency induction hardening of the tread and flange surfaces. This results in a tread hardness of HRC 45–55, with a hardened layer depth of 3–15 mm (depending on the wheel diameter), while maintaining high toughness in the core to withstand impact.
Quality Assurance & Testing
Every crane wheel assembly from Glory Rail undergoes comprehensive non-destructive testing (NDT) prior to shipment. Our quality control system complies with the requirements for DIN-standard crane wheel assemblies (wheel calculations in accordance with DIN 15070; bearing calculations in accordance with DIN 15071). Inspection records are archived and available for review during customer inspections.

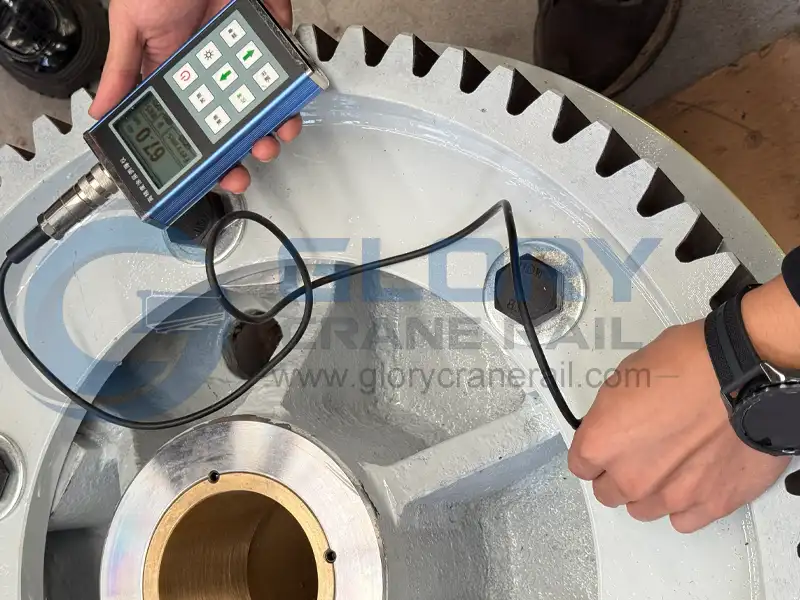

Ultrasonic Testing (UT):
Detects internal defects in wheel forgings, such as shrinkage cavities, inclusions, and cracks
Magnetic Particle Inspection (MPI):
Identifies surface and near-surface cracks on the tread, flange, and hub

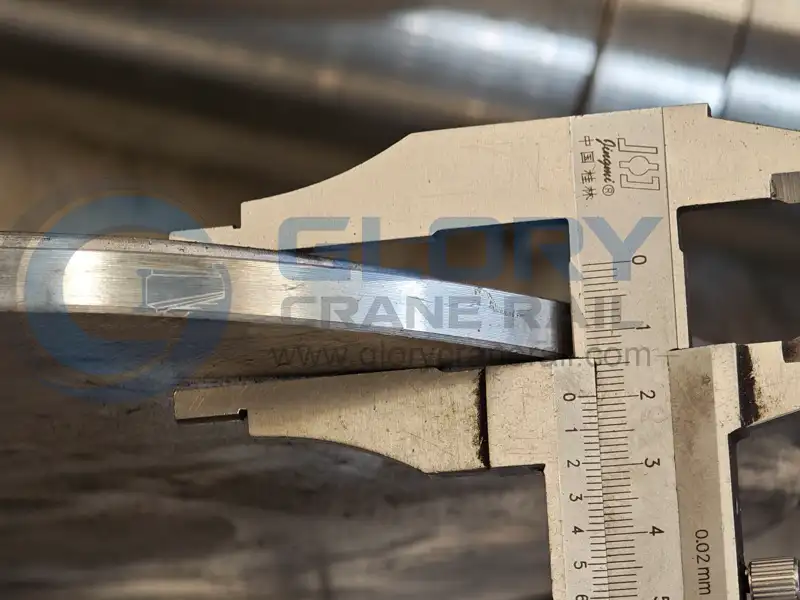

Dimensional and Hardness Testing:
CMM dimensional verification + Rockwell hardness testing of the tread (Target: tread hardness HRC 45–55)
Why Choose Glory Rail

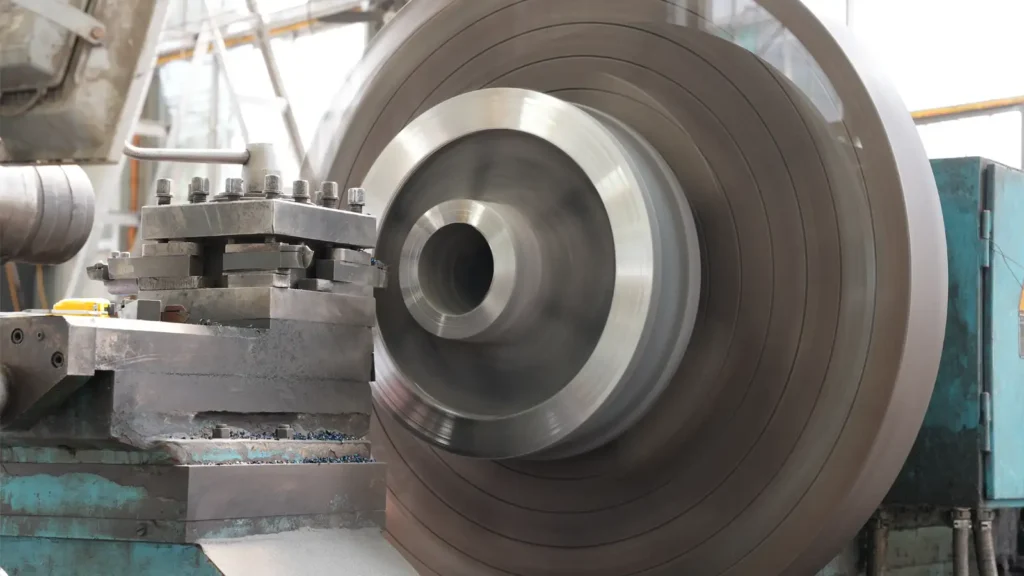

Glory Rail is a leading supplier of crane wheel assemblies in China, with over 15 years of manufacturing experience. Our factory is equipped with a 5,000-metric-ton hydraulic forging press, CNC machining centers, and medium-frequency induction hardening equipment, enabling us to produce forged steel crane wheel assemblies ranging from Ø160 mm to Ø1,000 mm and larger.
We offer comprehensive OEM/ODM services for crane wheel assemblies—from material selection and design optimization to custom packaging and labeling. Each custom crane wheel assembly is manufactured according to customer drawings or DIN standard specifications, and we provide complete material traceability and NDT reports.
Our Capacity
Ø160–Ø1000
Wheel diameter range (mm)
15+
Years of manufacturing experience
5,000T
Hydraulic forging press capacity
100%
NDT tested before shipment
Ready to source crane wheel assembly for sale from a trusted manufacturer?

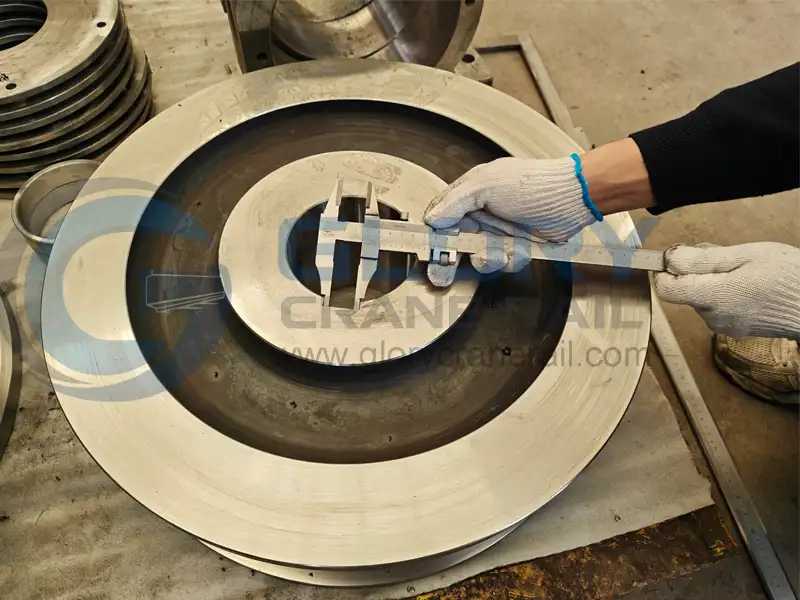

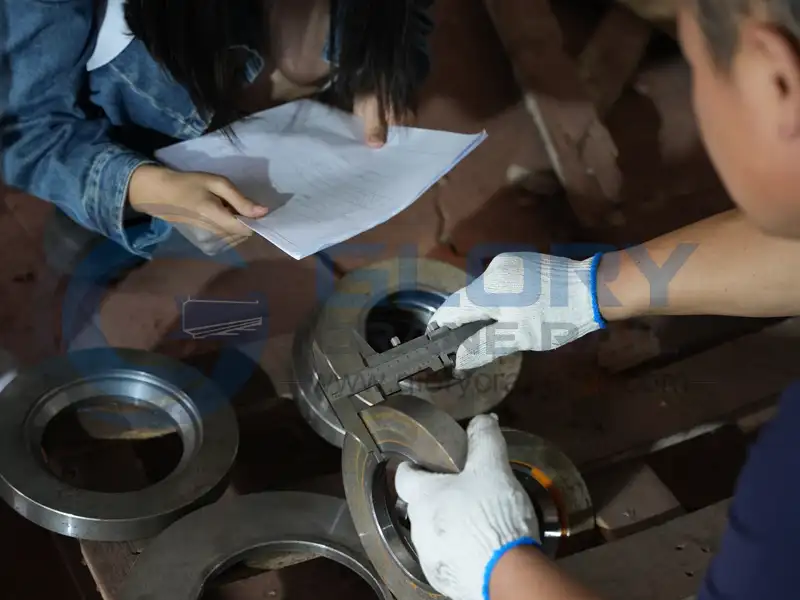

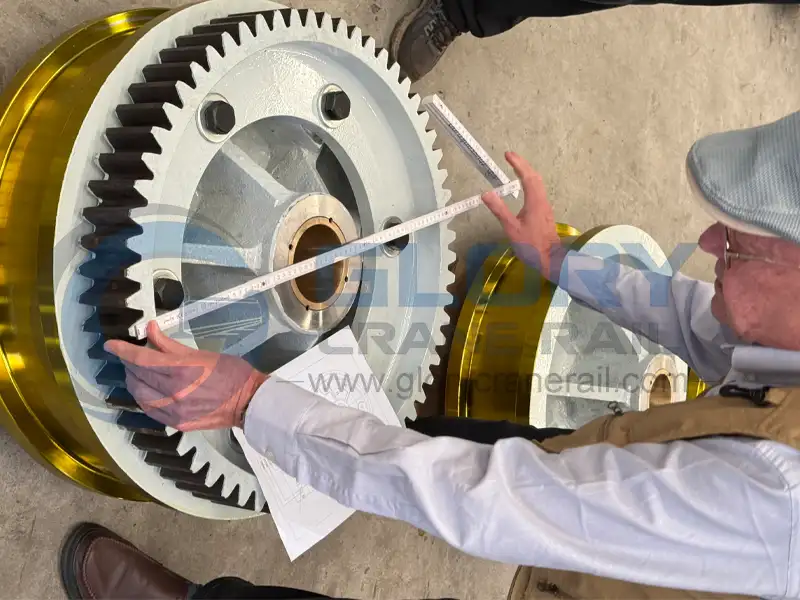

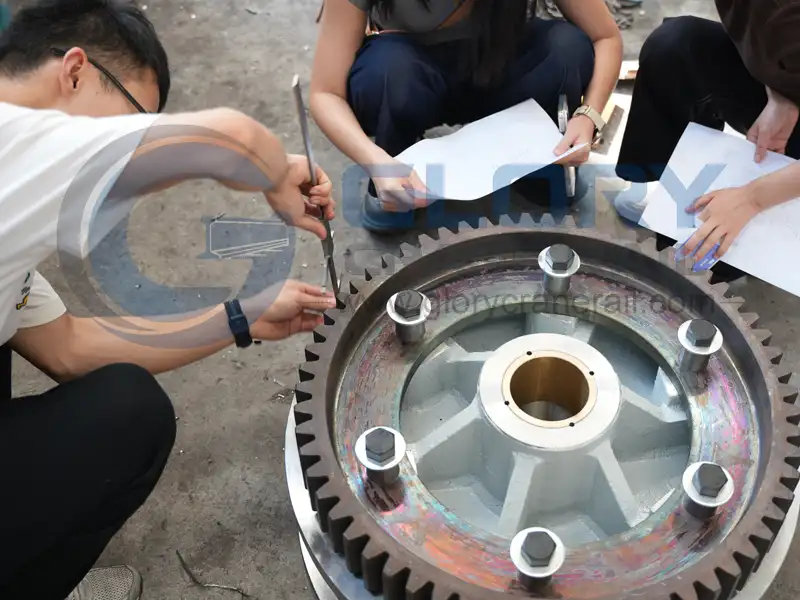

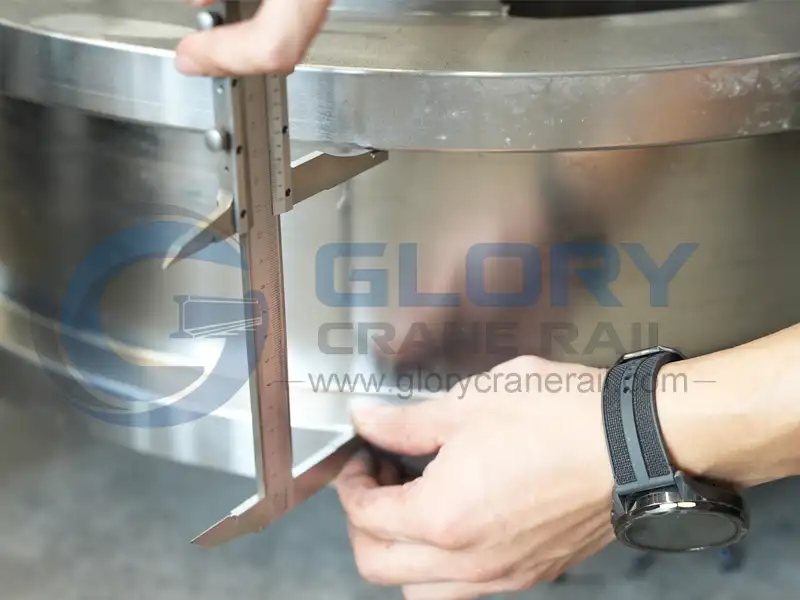

Customer Factory Inspection
Customers from around the world regularly visit the Glory Rail factory to conduct pre-shipment inspections of their crane wheel assembly orders. Our factory welcomes third-party inspections, customer-witnessed testing, and SGS/BV verification. Below are photos from recent customer inspections, including an ultrasonic testing demonstration and dimensional verification of finished crane wheel blocks.
