Crane Sheaves & Wire Rope Pulleys
Glory Rail offers professional custom crane pulley manufacturing services, covering six types of crane pulleys.
As a manufacturer of custom crane pulleys, we supply lifting pulleys, crane hoisting pulleys, and crane pulley
assemblies to more than 100 countries worldwide.
Single Wheel
Fixed Shaft / Rotating Shaft,
≤ Φ2000 mm
Double Wheel
Double-pulley block, commonly used in bridge cranes
Multi Wheel
Rounds 3–8,
Heavy-Lift / Port STS

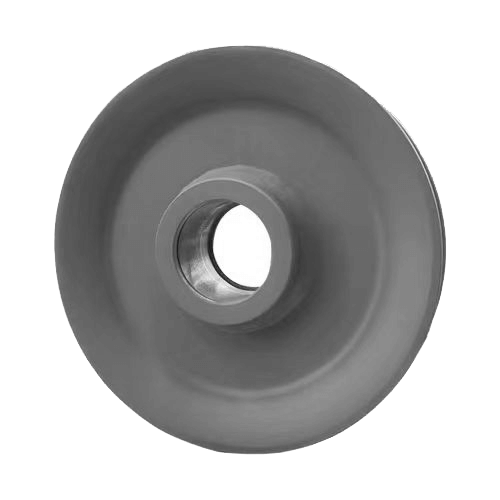

What’s A Crane Sheave?
A crane sheave, also known as a crane pulley or crane pulley wheel, is a grooved wheel mounted on a crane sheave bearing that guides the wire rope within a crane pulley system.
Crane sheaves serve three functions:
✔ Changing the direction of the wire rope;
✔ To support and transmit the hoisting load;
✔ To reduce bending stress on the wire rope and extend its service life.
In multi-ratio wire rope sheave configurations, adding hoisting sheaves can increase the hoisting ratio and lifting capacity. Glory Rail’s crane lifting sheaves feature precision-machined rope grooves, ensuring smoother operation and reduced wear.
Type of Sheaves in Crane — Crane Pulley Types
Glory Rail manufactures six main types of crane sheaves (i.e., crane pulley types), classified by manufacturing process and material:

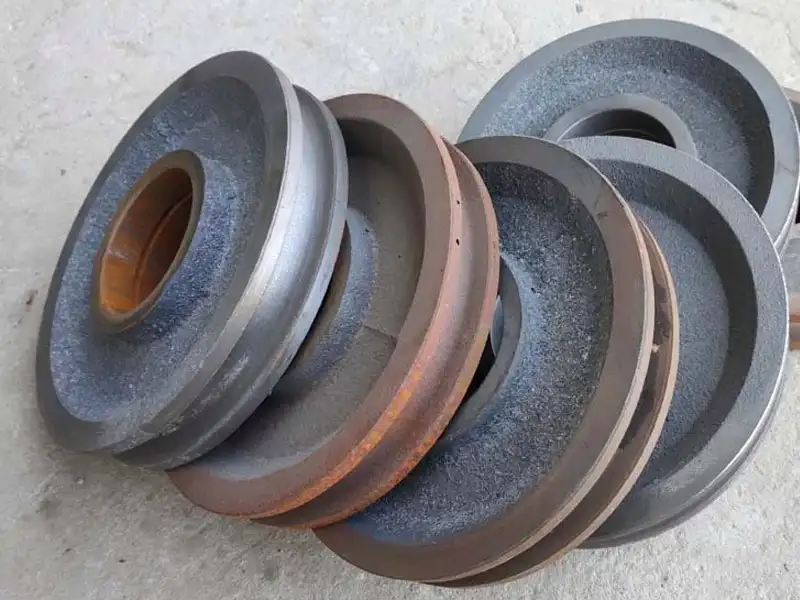

Rolling Crane Sheaves
✔ Hot-rolled from 50# steel, optimized strength to-weight ratio, approximately 40% lighter than case equivalents of the same diameter
✔ Precision-machined crane sheave grooves reduce wear and extend wire rope life.
✔ Suitable for medium- to heavy-duty port gantry cranes.

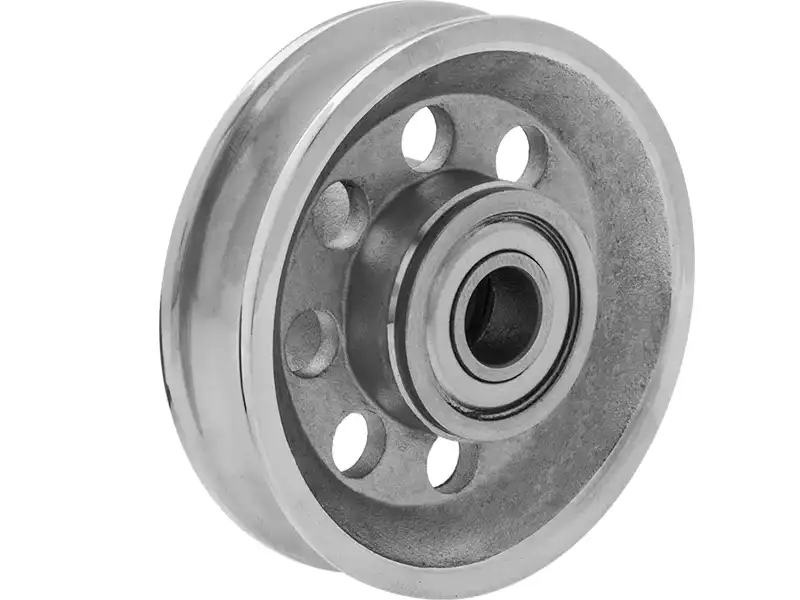

Casting Crane Sheaves
✔ Near-net-shape cast from QT400-18/ZG310 cast steel, with minimal machining allowance and low cost.
✔ Suitable for complex sheave geometries and internal cavity structures.
✔ A reliable choice for general-purpose bridge workshop cranes.
Welded Crane Sheaves
✔ Formed by pressing and welding 45# steel plates, with a nylon groove liner to provide wire rope protection.
✔ The triangular structure formed by the two support points and the hub ensures stability.
✔ Suitable for medium- and light-duty applications where wire rope protection is a priority.

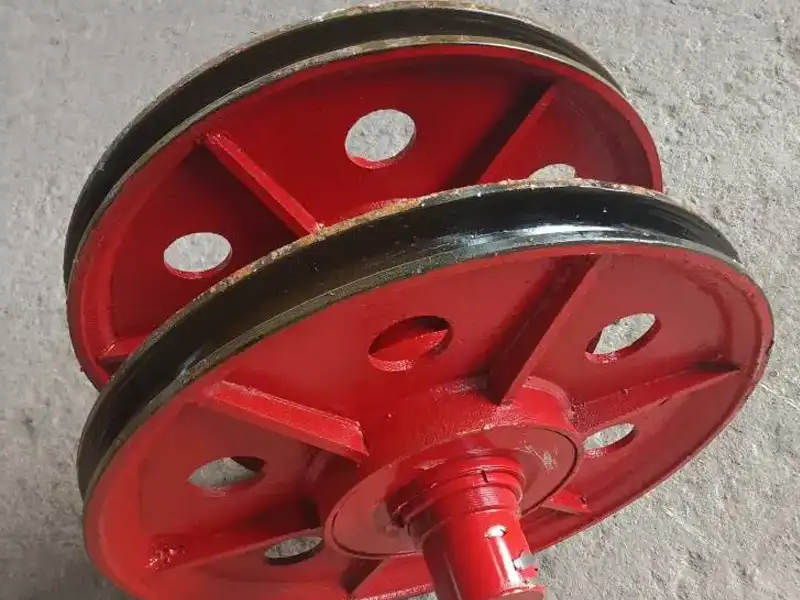

Double Radial Plate Pressed Sheaves
✔ Cold-formed from Q335/Q345 steel; the weldless construction eliminates the risk of weld defects.
✔ Cold forming prevents high-temperature oxidation and decarburization, preserving the material’s integrity.
✔ An economical and reliable crane sheave replacement solution.

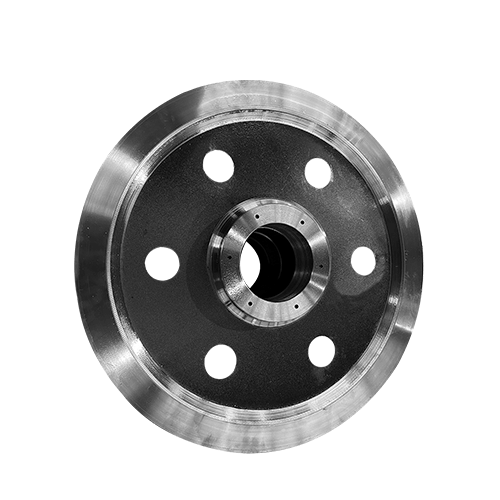

Forged Crane Sheaves
✔ Forging eliminates casting porosity and shrinkage cavities, resulting in a dense, uniform microstructure.
✔ Retains metal flow lines to provide excellent impact resistance.
✔ 42CrMo heat-treated to HRC 40–65, suitable for heavy-duty foundry and metallurgical cranes.
MC Nylon Crane Sheaves
✔ Self-lubricating, outperforming bronze bushings, cast iron, and PTFE; maintenance-free.
✔ Weigh only 1/7–1/8 as much as steel sheaves; spark-free, suitable for explosion-proof environments.
✔ High impact toughness and elasticity reduce stress on wire ropes and prevent slippage during emergency braking.
Looking for reliable crane sheaves for sale? Glory Rail manufactures forged, cast, and nylon crane sheaves, as well as complete crane pulley block sets. As a trusted custom crane sheaves manufacturer specializing in crane components,
Glory Rail offers one-stop custom crane sheaves manufacturing services—from material selection and crane sheave drawing analysis to final product delivery.
Key Component In Crane Operation
Functions of crane sheaves: to guide the wire rope and reduce friction. When a crane sheave rotates, the wire rope rolls along the groove of the sheave.
In a hoisting pulley system, the combination of moving and fixed pulleys determines the pulley ratio. A 4:1 system requires a hoisting block consisting of two moving pulleys and two fixed pulleys to reduce the pulling force to one-fourth of the load. Multiple hoisting blocks can be used in series to achieve higher pulley ratios.
Technical Specifications & Dimensional Standards
| Nominal Dia. Dn (mm) | Rope Dia. d (mm) | Sheave Groove Radius r (mm) | Material & Hardness | Matching Bearing | Application Type |
|---|---|---|---|---|---|
| Φ200 – Φ400 | 8.0 – 16.0 | d × 0.53 | Q355B / HB 160-200 | Deep Groove Ball / Roller | Light Duty crane pulley |
| Φ450 – Φ800 | 18.0 – 28.0 | d × 0.53 | 45# / 42CrMo (HB 260-320) | Spherical Roller Bearing | Sheaves for overhead cranes |
| Φ850 – Φ1200 | 30.0 – 42.0 | d × 0.535 | ZG35CrMo / Quenched HB 320-380 | Double-row Tapered Roller | Heavy crane block sheaves |
| Φ1250+ (Custom) | 44.0+ | Custom Design | Forged Steel / Quenched HRC 45-55 | Custom Heavy-duty Bearing | Port & Offshore crane pulley wheel |
What Are Crane Sheaves Made Of — Crane Pulley Material
| Type / Material | Features & Applications |
|---|---|
| Forged Steel | 42CrMo/AISI 4140. Offers the highest strength and is suitable for heavy-duty applications and hoisting sheaves in foundries. |
| Cast Steel | ZG270-500. Offers excellent value for money and is suitable for general-purpose wire rope sheaves and complex shapes. |
| Hot-Rolled | Q345B. Lighter weight, wear-resistant rope grooves, suitable for gantry cranes. |
| MC Nylon | Lightweight, spark-free, and with a rope guard. The perfect choice for European-style crane pulley hoists. |
Technical Selection Guide
D/d Ratio · Materials · Standards
The core function of crane sheaves is to change the direction of the wire rope, support the load, and reduce the bending stress on the wire rope per cycle. Selection is determined by the ratio of the sheave diameter to the wire rope diameter (D/d) and the geometry of the rope groove.
| Application | Min D/d Ratio | Standard / Reference |
|---|---|---|
| Standard overhead cranes M4–M5 | 18:1 | FEM 1.001 / ISO 4308[2] |
| Heavy duty cranes M6–M7 | 20:1 | FEM 1.001[2] |
| Very heavy / ladle cranes M8 | 25:1 | FEM 1.001[2] |
| Overhead cranes (6×19 IWRC) | 26:1 recommended / 18:1 absolute | ASME B30[1] |
| Mobile cranes | 18:1 | ASME B30[1] |
Whether you need sheaves for overhead cranes, bridge cranes, or port cranes, Glory Rail offers crane sheave drawing analysis and creation services. Every batch of crane sheaves undergoes UT/MT non-destructive testing, hardness testing, and dimensional inspection in accordance with ISO 9001 and meets GB/ISO/DIN/ASTM standards.

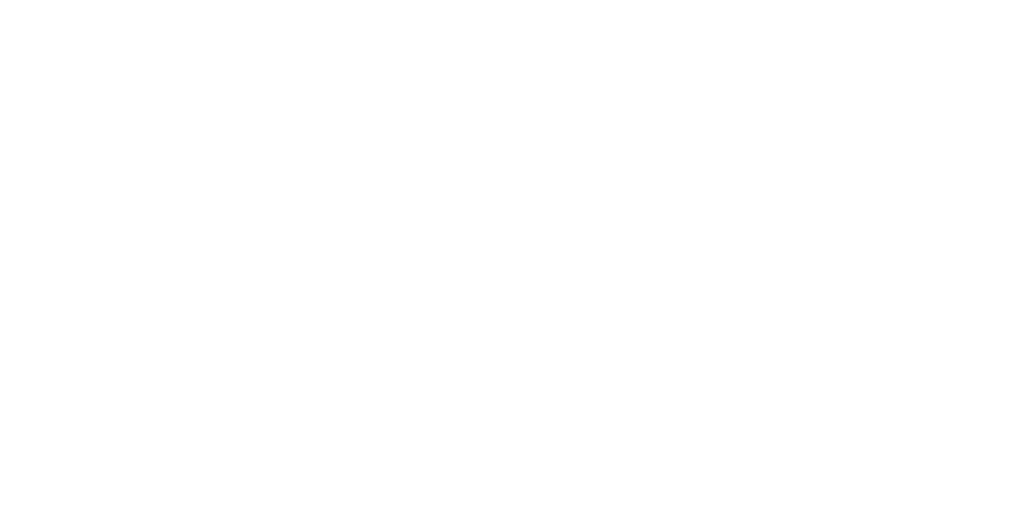

Crane Sheave Drawing Analysis and Creation
As your custom crane sheave manufacturer, Glory Rail provides crane sheave drawing analysis and creation: we reverse-engineer worn samples into 3D models, reconstruct missing OEM drawings, and manufacture replacement crane block sheaves. We are also a reliable supplier of crane sheave spare parts, offering bearings, shafts, and split bearing housings.
1
Drawing Analysis
Engineer review of crane sheave drawings with suggestions
2
Reverse Engineering
Sample → 2D/3D crane sheave design CAD
3
On-site Measurement
Field survey & crane sheave dimensions capture
4
Custom Production
Custom crane sheaves manufacturer production
Frequently Asked Questions
The function of crane sheaves is to change the direction of the wire rope, support the load, reduce bending stress per cycle, and amplify the lifting force through a multi-sheave crane pulley system.
Commonly used materials include forged 42CrMo / 60# steel, as-cast QT400-18, rolled Q345B, or as-cast MC nylon, selected based on load, operating conditions, and environment; the rope grooves are hardened to HRC 40–65.
A single crane pulley wheel only changes the direction of the rope; a multi-wheel crane sheave block or crane pulley block provides mechanical advantage, allowing heavier loads to be lifted with less rope tension.
If D/d is too small, it will exacerbate bending fatigue in the wire rope and shorten its service life. The minimum ratio is specified by ASME B30, FEM 1.001, and ISO 4308 based on the service class.
Yes. Glory Rail offers crane sheave drawing analysis and creation, reverse-engineers samples into 3D models, and manufactures OEM-grade replacement parts as your custom crane sheave manufacturer.
Choose from sliding, roller, or self-aligning roller bearings; split bearing housings allow for bearing replacement without removing the shaft. Lubricate regularly according to operating conditions, and periodically check the rope grooves and bearing clearance.
Standard parts ship within 7–15 days; custom parts within 2–4 weeks. Low minimum order quantities; single-item orders for crane sheave spare parts are also accepted.
