Single Flange Crane Wheel—Type DL
Material:
Forged 42CrMo, 65Mn, #65 Steel
Surface Hardness:
HB330-380 (Depth ≥20mm)
Machining Tolerance:
CNC ±0.01mm
Diameter:
300-2000mm or Customized
Load Capacity:
10-60 tons/wheel (up to 100t)
Standards:
DIN, ISO, FEM, AISE, CE
As a leading supplier of single-flanged crane wheels and an OEM crane wheel supplier, Glory Rail provides 42CrMo/65Mn heavy-duty single-flanged crane wheel solutions for overhead crane and gantry crane applications worldwide. Get your custom quote today!
100% Response Rate | ISO9001 Certified | MTR Report Included
Professional Double Rim Crane Wheel Manufacturer

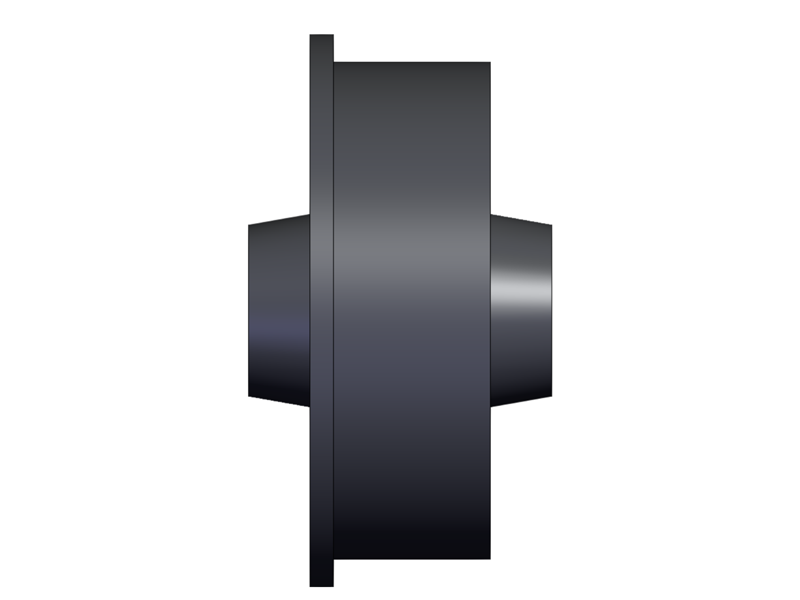

Single-flange crane wheel, also known as a single-rim crane wheel, features a raised flange on only one side of the tread. This single-rim/flange design allows the wheel to be guided along one side of the rail while permitting limited lateral movement on the other side. It is particularly suitable for monorail systems, trolley applications, and crane runways with lighter loads, where precise single-side guidance is required.

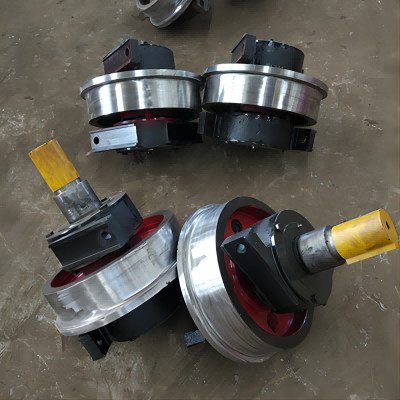

At Glory Rail, our DL-type single-flange crane wheels are specifically designed for monorail crane systems and trolley wheel applications. Each wheel is manufactured from forged alloy steel (such as 42CrMo) or medium-carbon steel, and undergoes precision CNC machining and induction surface hardening. As an experienced supplier of single-flange crane wheels, we ensure that every wheel delivers a long service life, low wear, and reliable performance in demanding industrial environments.
Key Advantage: At Glory Rail, our DL-type single-flange crane wheels are specifically designed for monorail crane systems and trolley wheel applications. Each wheel is manufactured from forged alloy steel (such as 42CrMo) or medium-carbon steel, and undergoes precision CNC machining and induction surface hardening. As an experienced supplier of single-flange crane wheels, we ensure that every wheel delivers a long service life, low wear, and reliable performance in demanding industrial environments.
Single Flange Crane Wheel Technical Specifications
| Parameter | Specification | Notes / Tolerance |
|---|---|---|
| Type Code | DL (Single Rim) | Also known as single flange crane wheel |
| Wheel Tread Diameter (D) | 300 – 2000 mm (custom available) | Tolerance class h9; φ100-1250mm standard range |
| Standard Sizes | 250, 315, 400, 500, 630, 800, 1000, 1200 mm | Other sizes available upon request |
| Wheel Tread Width (B1) | 80 – 220 mm | Tread width should be slightly wider than rail head |
| Flange Height | 20 – 25 mm (standard); 15 – 30 mm (custom) | Single-side flange |
| Bore Diameter (d) | 100 – 320 mm | Bearing bore tolerance: H7 / H8 as per drawing |
| Wheel Load Capacity | 10 – 60 tons per wheel (up to 100t heavy duty) | Calculated per FEM/DIN standards; trolley applications commonly under 50t |
| Material Options | #65 / 65Mn / 42CrMo (forged or cast) | Other alloy steels (35CrMnSi, ZG35CrMo) on request |
| Production Process | Forged / Casting + CNC Machining | Forged single flange crane wheel for heavy duty; cast for medium loads |
| Surface Hardness | HB 300 – 380 (standard); HB 330 – 380 (induction hardened) | Heat treated tread & flange; varies by duty class (A1-A8) |
| Hardening Depth | ≥ 20 mm | Induction quenching + tempering; case depth 20-40mm for large wheels |
| Heat Treatment Method | Quenching & Tempering + Induction Surface Hardening | Rim quenching after whole-wheel Q&T |
| Bearing Type | Rolling / Sliding bearing | Tapered roller, spherical roller, or plain bearing |
| Bearing Options | SKF / FAG / NSK / Spherical Roller / Tapered Roller | Selected based on radial/axial load and start-stop frequency |
| Surface Treatment | Coating / Heat Treated / Plating | Painting, zinc plating, galvanizing, or as specified |
| Processing Accuracy | Dimensional tolerance up to ±0.01 mm | Precision CNC machining with in-process gauging |
| Surface Finish | Ra 3.2 – 6.3 μm | Tread and bore surface roughness |
| Applicable Standards | DIN, ISO, EN, AISE, JIS, BS, API, GOST, GB/T | Manufactured to customer’s specified standard |
| Rail Compatibility | QU70, QU80, QU100, QU120, DIN 536 (F-series), I-beam | Tread width matched to rail head profile |
| Working Temperature | -25°C to +40°C | Low-temperature modifications available (down to -40°C with 34CrNiMo6) |
| Yield Strength | σs ≥ 400 MPa (42CrMo, Q&T) | 42CrMo Q&T: 550-750 MPa; #65: 380-550 MPa |
| Elongation | δ5 ≥ 15% | Forged wheels: 15-20%; cast wheels: 10-15% |
| NDT Inspection | Ultrasonic Testing (UT) + Magnetic Particle Inspection (MPI) | 100% internal defect and surface crack inspection |
| Quality Documentation | Material certificate, hardness profile, case depth report, dimensional inspection certificate | NDT records (MT/UT/RT) and MTR included with every shipment |
| Customization | Drawing-based manufacturing | Material, size, hardness, flange profile — all customizable |
Need special sizes or materials not listed in the table? We manufacture custom single-rim crane wheels made of 42CrMo for port cranes, as well as products for other heavy-duty applications.
Need a Complete Single Flange Crane Wheel Assembly?

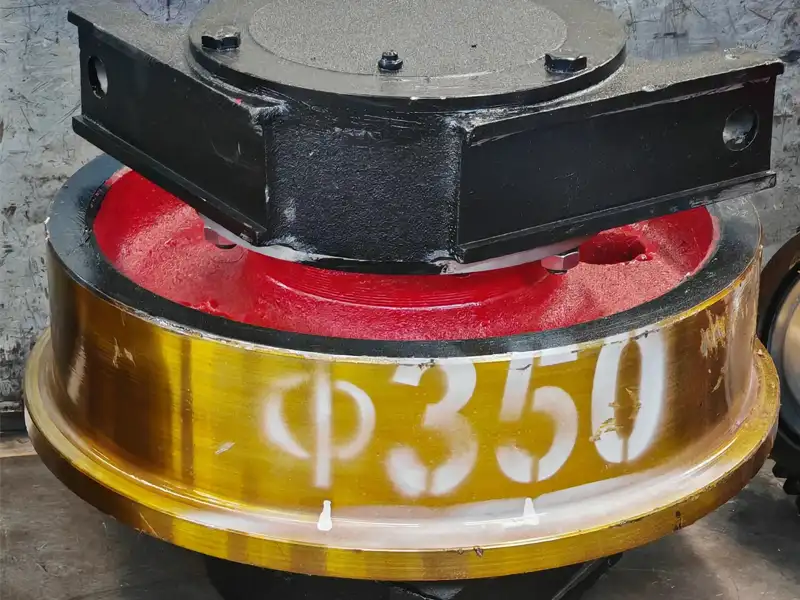

Glory Rail offers complete single-flange crane wheel assembly solutions, including wheels, axles, bearings, and bearing housings—all precision-engineered and quality-tested as a single unit. As your trusted single-flange crane wheel supplier, we ensure that every single-flange crane wheel assembly meets the highest standards of performance and reliability.
Precision-forged shaft: Manufactured from high-strength 42CrMo/40Cr alloy steel, quenched and tempered, and equipped with a precision-ground keyway, for use in single-rim crane wheel assemblies.
Bearing housing: CNC-machined ductile iron or cast steel bearing housing, ensuring precise alignment and smooth operation of the single-flange trolley wheel assembly.
Precision-forged shaft: Manufactured from high-strength 42CrMo/40Cr alloy steel, quenched and tempered, and equipped with a precision-ground keyway, for use in single-rim crane wheel assemblies.
Bearing housing: CNC-machined ductile iron or cast steel bearing housing, ensuring precise alignment and smooth operation of the single-flange trolley wheel assembly.
Material Selection Guide
Advanced Crane Wheel Material Selection & TGL/DIN Customization
Choosing the right material for your single-flange crane wheel is critical to its performance and service life. As an experienced manufacturer of single-flange crane wheels, Glory Rail offers the following material options:
Standard Grade
65Mn Steel
✔ Medium- to high-carbon steel;
✔ Good hardenability and wear resistance;
✔ An economical choice for general-purpose applications;
✔ Suitable for loads of approximately 50 metric tons or less;
✔ Commonly used in workshop overhead cranes;
✔ Can be heat-treated to HB 330–380;
Heavy Duty
42CrMo Alloy Steel
✔ High-strength chromium-molybdenum steel;
✔ Excellent toughness and fatigue resistance;
✔ Higher load-bearing capacity (up to 100 metric tons);
✔ Deep hardening with uniform hardness;
✔ Ideal material for forged single-flange crane wheels;
✔ Suitable for cranes in ports and steel mills
Cast Option
ZG340-640 / GS-70
✔ Cast steel is suitable for complex shapes;
✔ Good machinability and weldability;
✔ Lower cost for medium-sized applications;
✔ Available in a wider range of sizes;
Suitable for single-flange trolley wheels;
✔ Forged variants are also available
Not sure which material to choose? Our engineering team can assist you in selecting the right material for your single-flange crane wheels based on your specific load, speed, duty cycle, and environmental conditions. As an experienced OEM supplier of single-flange crane wheels, Glory Rail has provided wheel products for virtually every type of crane application.
Need help selecting materials? Get free material recommendations from our engineers.
Quality Control & Manufacturing Process
Every Glory Rail dual-flange crane wheel undergoes a rigorous, multi-stage quality inspection process.
Raw Material Inspection:
Ultrasonic and magnetic particle testing to ensure there are no internal defects.
CNC Machining:
Precision CNC turning and milling, with in-process dimensional verification at every stage.
Heat Treatment:
Induction surface hardening — hardness HB330–380, hardening depth ≥20 mm.
Final Inspection & Packaging:
100% final inspection + hardness test report, export-grade wooden crate packaging.
Want to see more inspection photos or quality certificates? Contact us to obtain the complete quality documentation for our heavy-duty double-rim wheels.
