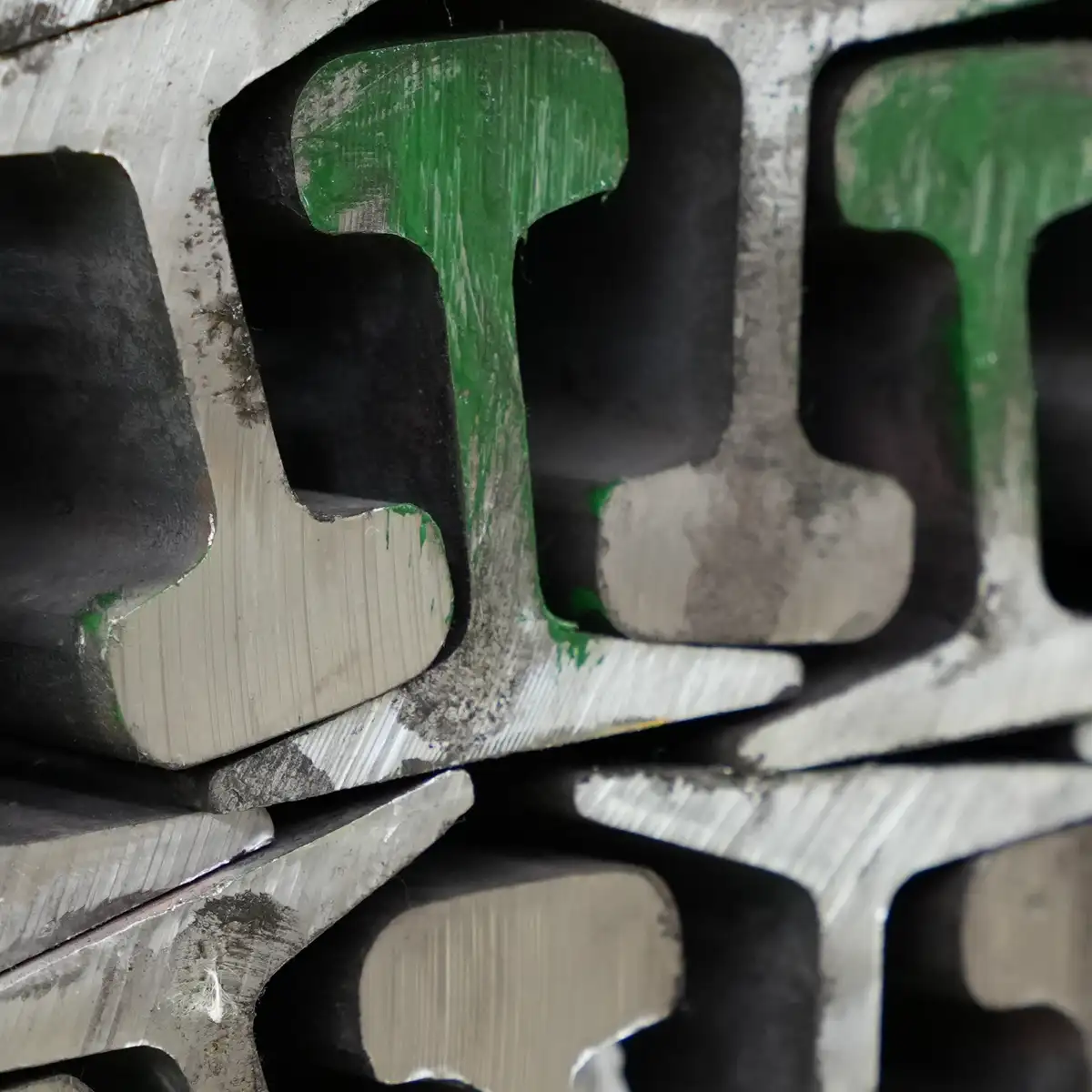

ASCE 25 Rail
Glory Rail offers ASCE 25 rail, also known as 25-pound rail, which is suitable for light-duty track systems that have been verified for load capacity, gauge, and operating conditions. For engineering projects that require determination of track cross-sections, installation space, and connection methods, we not only provide track products but also assist customers in verifying technical specifications, fabrication requirements, and compatible fastening systems.
As an engineering and system integration center, Glory Rail can assist in evaluating the suitability of ASCE 25 rail dimensions, material requirements, rail joints, and fastening components based on project drawings, equipment specifications, and on-site installation conditions, providing technical support for rail selection and project implementation.
Quick System Match: Find the Right ASCE 25 Rail Solution
Select your project requirements below, and our engineering team will provide a customized rail, clip, and pad configuration within 12 hours.
ASCE 25 Rail Basic Dimension

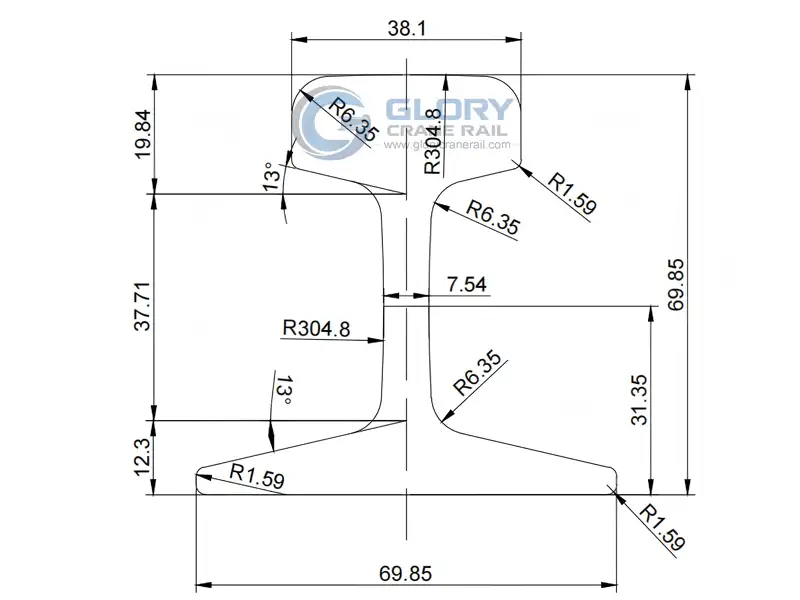

Before finalizing the rail selection, verify the key ASCE 25 rail dimensions. The table below lists the basic parameters for common ASCE 25 / 2540 cross-sections. Before placing an official purchase order, verify the specific rail type using the approved cross-section drawings.
| Rail Profile | Standard | Dimensions | Mass | |||
|---|---|---|---|---|---|---|
| Head Width | Height | Base Width | Web Thickness | |||
| ASCE 25 Rail | ASTM A1/ AREMA | 38.1mm | 69.85mm | 69.85mm | 7.54mm | 12.4 kg/m |
Engineering Note: For track replacement projects or projects that require compatibility with existing wheels or fixed structures, dimensions and interface conditions should be verified based on the specified cross-sectional drawings.
Mechanical properties of 25 LB ASCE Rail
The mechanical properties of ASCE 25 rail material depend on the actual grade of steel supplied and the applicable material specifications. Glory Rail verifies material requirements based on the project’s technical documentation and provides the corresponding material certification documents as specified in the order.
| Materials | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation | Hardness (HB) |
|---|---|---|---|---|
| U71Mn | ≥ 880 MPa | ≥ 390 MPa | ≥ 9% | — |
ASCE 25 Rail Chemical Composition
| Materials | Chemical Composition (%) | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | S | P | Cr | Ni | Cu | |
| U71Mn | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤ 0.030 | ≤ 0.030 | ≤ 0.250 | ≤ 0.250 | ≤ 0.250 |
ASCE 25 Rail Applications and Engineering Selection
When selecting ASCE 25 Rail, consider wheel load, wheel-rail matching, support conditions, and fastening requirements, and verify the relevant parameters before confirming the rail type.
Wheel Loads
Verify the wheel load, operating speed, and dynamic operating conditions.
Rail & Wheel Fit
Check the rail head dimensions, the wheel tread, and the flange clearance.
Support & Fastening
Verify the support spacing, shims, and fastening methods.
Joints & Installation
Core coupling configurations, hole patterns, and installation tolerances.
Glory Rail can assist in conducting a preliminary review of track specifications and system compatibility based on the equipment parameters, track layout diagrams, and installation requirements provided by the customer.
Engineering Note: The suitability of a rail must be verified based on the project’s actual loads, support conditions, and relevant design requirements; it cannot be determined solely by the rail model.
Unsure Whether ASCE 25 Rail Fits Your Application?
Provide your equipment type, wheel-load information, operating conditions, and support arrangement where available.
Glory Rail can help review the information and identify the technical points that require further verification.
ASCE Rail – Custom Processing Services
Glory Rail can evaluate the custom fabrication requirements for ASCE 25 rails based on approved project drawings and fabrication specifications.
Precision Length Cutting
Glory Rail supply custom-length ASCE crane rails (e.g., 6 m, 12 m, 20 ft, 30 ft, 40 ft, or any specified length) with smooth cut edges and a tolerance of ±1 mm.
Miter Cutting / Beveling
Supports 45° / 60° bevel cuts at the ends of rails (for expansion joints or smooth joints), as well as beveling for welding (beveled ends for thermite/flash butt welding).
Custom Drilling & Punching
Holes are drilled with precision according to customer drawings, strictly adhering to the ASCE rail drilling pattern specifications for hole spacing and diameter. We support two-hole, four-hole, and non-standard irregular hole patterns.
Rail Bending & Curving
Glory Rail provide horizontal and vertical cold-bending and arc-forming services for curves in industrial facilities, amusement park rides, and mining tracks.
Surface Coating & Treatment
Paint coating, sandblasting for rust removal, application of rust-preventive oil, or hot-dip galvanizing extend the service life in harsh environments.
Chamfering & Deburring
The rail ends are chamfered (2–5 mm × 45°) to prevent damage to the wheel flange during wheel transition. All drilled holes and cut edges are thoroughly deburred to ensure safe handling and installation.
Need a Non-Standard Length or Custom Machining?
Tell us your required rail lengths, quantities, hole patterns, rail-end configurations, and dimensional tolerances.
Glory Rail can review the processing requirements against your project drawings and manufacturing feasibility.
Complete Rail Fastening System & Accessories Supplying
GloryRail offers a complete range of ASCE crane rails (ASCE20-ASCE85), along with rail fastening systems and custom fabrication services. We provide one-stop supply solutions for crane projects in ports, steel mills, shipyards, warehousing and logistics, and heavy industry.
Rail Rubber Pads
GloryRail offers both individual rubber pads and continuous rubber pads, suitable for a wide range of crane rail systems. These rubber pads absorb vibrations, cushion impact loads, and evenly distribute wheel pressure, thereby extending the service life of the rails, foundation structures, and fasteners.
Crane Rail Clips
Rail clamps securely fasten the rails while allowing for appropriate movement due to temperature changes and operational loads. We offer welded, bolted, adjustable, and heavy-duty rail clamps suitable for various crane rail models.
Steel Sole Plates & Base Plates
GloryRail offers two types of steel pads and base plates.
Long-type base plates: Provide continuous support and improve wheel load distribution.
Short-type base plate: Suitable for stable positioning in compact support structures.
Anchor Bolts & Rail Fasteners
GloryRail offers anchor bolts, rail bolts, nuts, washers, and a variety of custom rail fasteners. These products provide a reliable connection between the rails, the fastening system, and the concrete foundation, ensuring long-term safe operation.
Rail Fishplates
Fishplates are used to connect rail joints and maintain track continuity and alignment accuracy. We offer both standard and custom-machined products to meet various track standards and project requirements.
Crane Buffers & End Stops
Crane buffers and end stops are designed to absorb impact energy and protect cranes, rails, building structures, and equipment from damage caused by accidental collisions. They are widely used in bridge cranes, gantry cranes, port machinery, and automated material handling systems.
Avoid mismatch risks. Every ASCE 25 rail system requires precisely matched clips, pads,
and baseplates to ensure load distribution and extend service life.
