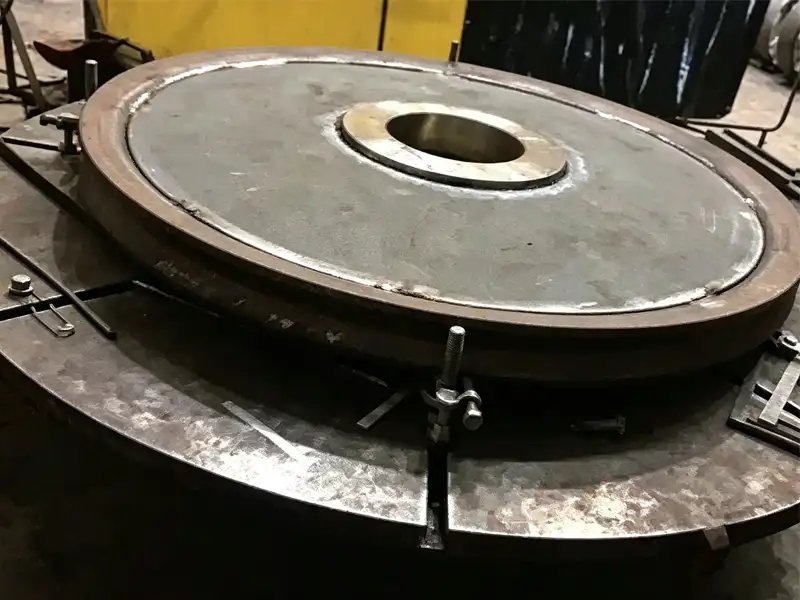

Welding Crane Sheaves
Material:
Q235B, Q345B steel plates
Diameter:
300-1000mm
Roll Length:
800-5500mm
Surface Hardness:
HB300-380
Manufacturing Process:
Plate cutting + Rolling + Welding
Standards:
DIN 15401, DIN 15402, GB/T 10051
As a trusted manufacturer of welded crane sheaves, Glory Rail provides heavy-duty steel plate welded sheave solutions for bridge and gantry cranes. Our welded wire rope sheaves are lightweight yet exceptionally durable, ensuring excellent structural integrity while reducing the crane’s dead weight. All products comply with DIN and GB international manufacturing standards.
Get a custom quote today!
100% Response Rate | ISO9001 Certified | MTR Report Included
Key Advantages & Material Specs
Lightweight & High Strength
Structure
Compared to traditional cast sheaves, our lightweight, high-strength welded crane sheaves are designed to reduce the equipment’s weight by up to 25%, thereby significantly lowering operational inertia and motor torque requirements.
Precision Machined & Heat-Treated Grooves
Compared to traditional cast sheaves, our lightweight, high-strength welded crane sheaves are designed to reduce the equipment’s weight by up to 25%, thereby significantly lowering operational inertia and motor torque requirements.
Flawless Welding & Rigorous NDT Inspection
Every welded pulley for cranes features rope grooves that have undergone high-frequency induction hardening, resulting in a surface hardness of HB 300–380, which minimizes wire rope wear and extends service life.
Looking for a reliable manufacturer of welded crane sheaves? Glory Rail has over 15 years of manufacturing experience, and our products are exported to more than 50 countries. Our team of welded steel pulley suppliers is here to serve you!
Technical Specifications of Welded Sheave
As a professional manufacturer of welded crane sheaves, Glory Rail provides a comprehensive selection chart for welded sheave specifications, covering a complete product line with lifting capacities ranging from 3.2 metric tons to 100 metric tons. Our steel plate welded sheaves feature an optimized, lightweight, high-strength design that ensures exceptional load-bearing capacity while minimizing weight. The detailed specifications below present performance data for welded wire rope sheaves of various diameters (Φ300–Φ1000 mm), including sheave ratio, pitch, maximum lifting height, and weight information, to help you quickly select the most suitable solution from our welded steel pulley supplier for your crane system.
| Specifications | Lifting Tonnage | Pulley ration | Pitch | Max lifting height(M) | Weight(KG) |
|---|---|---|---|---|---|
| Φ300*1000 | 3.2T | 1 | 14 | 27 | 264 |
| Φ300*1000 | 3.2T | 2 | 14 | 22 | 344 |
| Φ400*1000 | 5T | 2 | 16 | 15 | 340 |
| Φ400*1000 | 10T | 3 | 16 | 23 | 564 |
| Φ500*1000 | 20T | 4 | 20 | 12 | 788 |
| Φ500*1000 | 15T | 3 | 20 | 36 | 1326 |
| Φ650*1000 | 32T | 4 | 24 | 17 | 1500 |
| Φ800*1000 | 50T | 5 | 28 | 14 | 2532 |
| Φ800*1000 | 75T | 5 | 32 | 20 | 4094 |
| Φ1000*1000 | 50T | 5 | 28 | 22 | 3038 |
| Φ1000*1000 | 100T | 6 | 36 | 22 | 6140 |
Can’t find the right specifications for your project? As an experienced manufacturer of welded crane sheaves, Glory Rail not only offers standard-sized welded sheaves but also customizes steel plate welded sheaves with special dimensions and load capacities to meet your needs. Our engineering team will assist you in selecting the optimal lightweight, high-strength welded crane sheave configuration to ensure it meets your specific operational requirements.
Contact our technical team at the welded steel sheave supplier today to receive a personalized quote and professional technical support—we promise to respond to your inquiry within 24 hours and provide you with wire rope welded sheave solutions that comply with the DIN 15401 standard.
