DIN536 CRANE RAIL
Models include: A45, A55, A65, A75, A100, A120, A150.
Glory Rail specializes in manufacturing and supplying top-of-the-line DIN 536/1 crane rail systems designed specifically for heavy-duty industrial applications. Whether you need to install brand-new crane tracks or are looking for cost-effective crane rails for sale to upgrade your existing factory logistics system, our heavy-duty steel crane rail tracks ensure seamless and reliable operation even under extreme wheel loads.
A stands for type A. The numbers stand for head width.
What Is DIN536 Crane Rail
DIN 536 crane rails are hot-rolled flat-bottomed rails manufactured in accordance with German Industrial Standards (DIN). Their unique wide-flange and heavy-duty web design evenly distributes loads, providing exceptional stability for heavy-duty material handling. As a high-quality crane rail track, it is widely used in industrial projects across Europe, Asia, and the Middle East, and serves as an indispensable core component of modern crane systems.
Basic Dimensions
Glory Rail offer a complete range of crane rail profiles, covering all standard models from light-duty to heavy-duty. All dimensions are subject to strict tolerance controls to ensure a perfect fit.
The German standard DIN 536/1-1991 specifies seven core DIN 536 crane rail profiles

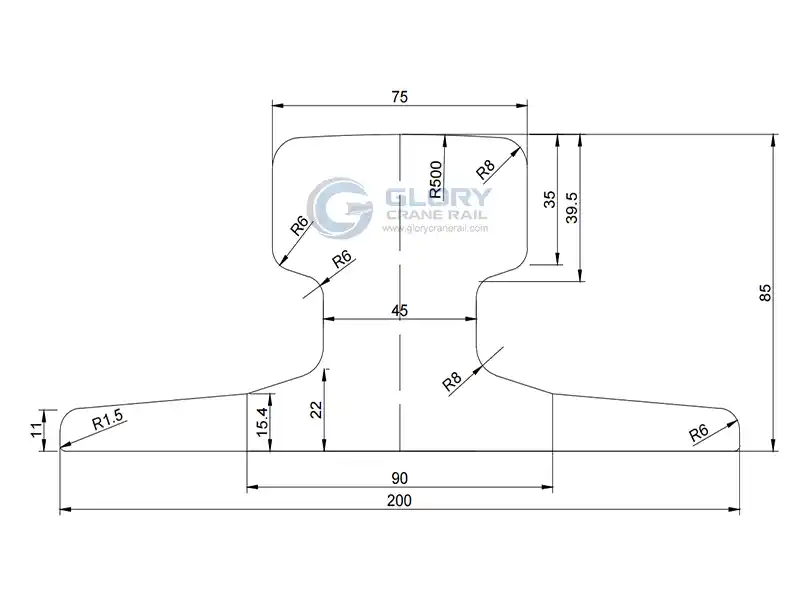

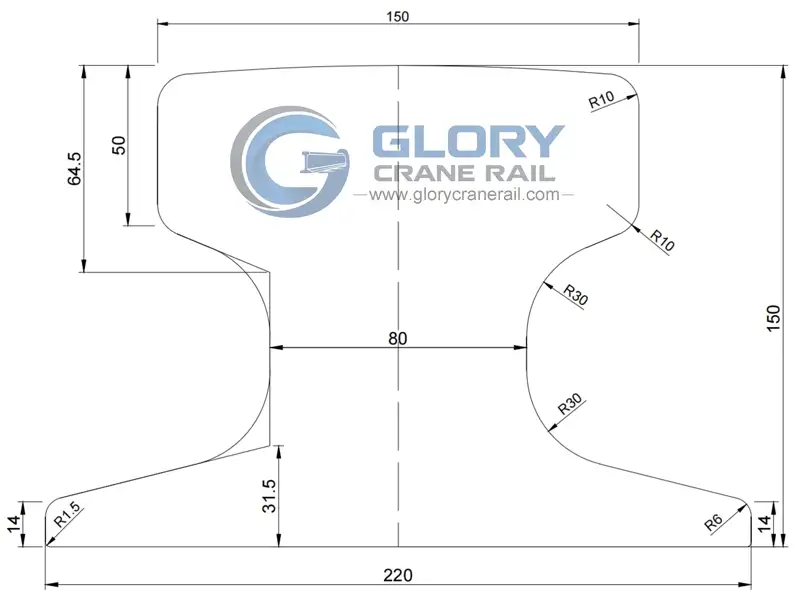

Below is a table of standard dimensions for various crane rail profiles under the DIN 536 Type A standard. Whether you are upgrading an existing system or building a new facility, we have crane rails for sale that fully meet your engineering requirements.
| Profiles | Weight | Head width | Height | Base width | Web | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| kg/m | lb/yd | mm | in | mm | in | mm | in | mm | in | |
Material & Mechanical Properties
To meet the demands of structural engineering worldwide, our DIN 536 crane rail series offers a variety of high-tensile steel grades (such as 700, 900, 110CrV, and R340), ensuring excellent wear resistance and an exceptionally long service life under repeated mechanical stress. The rails undergo advanced heat treatment processes, providing superior wear resistance and impact resistance.
| Grades | Tensile Strength MPa |
Yield Strength MPa |
Elongation % |
Hardness (for information only) HB |
|---|---|---|---|---|
| 70 kg (700) | ≥ 690 | ≥ 355 | ≥ 12 | ≥ 200 |
| 90 kg (900) | ≥ 880 | ≥ 440 | ≥ 8 | ≥ 260 |
| 110 CrV (1100) | ≥ 1080 | ≥ 640 | ≥ 7 | ≥ 320 |
| R340 | ≥ 1150 | ≥ 600 | ≥ 7 | ≥ 340 |
Chemical Composition
Our DIN 536 crane rails are manufactured from high-quality steel grades such as U71Mn, U75V, and R260. These materials ensure high tensile strength and excellent wear resistance, making them the perfect foundation for any heavy-duty crane rail system.
| Grades | C % |
Si % |
Mn % |
Cr % |
V % |
P % |
S % |
|---|---|---|---|---|---|---|---|
| 70 kg (700) | 0.40 – 0.60 | ≤ 0.350 | 0.80 – 1.20 | – | – | ≤ 0.045 | ≤ 0.045 |
| 90 kg (900) | 0.60 – 0.80 | ≤ 0.500 | 0.80 – 1.30 | – | – | ≤ 0.045 | ≤ 0.045 |
| 110 CrV (1100) | 0.65 – 0.85 | ≤ 0.500 | 0.90 – 1.30 | 0.20 – 0.80 | 0.05 – 0.15 | ≤ 0.040 | ≤ 0.040 |
| R340 | 0.80 – 0.95 | ≤ 0.500 | 0.90 – 1.40 | 0.20 – 0.80 | 0.05 – 0.15 | ≤ 0.045 | ≤ 0.045 |
| U71Mn | 0.65 – 0.76 | 0.15 – 0.58 | 0.70 – 1.40 | – | – | ≤ 0.035 | ≤ 0.030 |
| U75V | 0.71 – 0.80 | 0.50 – 0.80 | 0.75 – 1.05 | – | 0.04 – 0.12 | ≤ 0.035 | ≤ 0.030 |
| R260 | 0.62 – 0.80 | 0.15 – 0.58 | 0.70 – 1.20 | ≤ 0.15 | ≤ 0.030 | ≤ 0.025 | ≤ 0.025 |
Applications & Industries of DIN536 Crane Rails
Lightweight and Automated Systems (A45 / A55 / A65)
Core Applications: Automated Storage and Retrieval Systems (ASRS) | Smart Logistics | Light-Duty Workshop Cranes

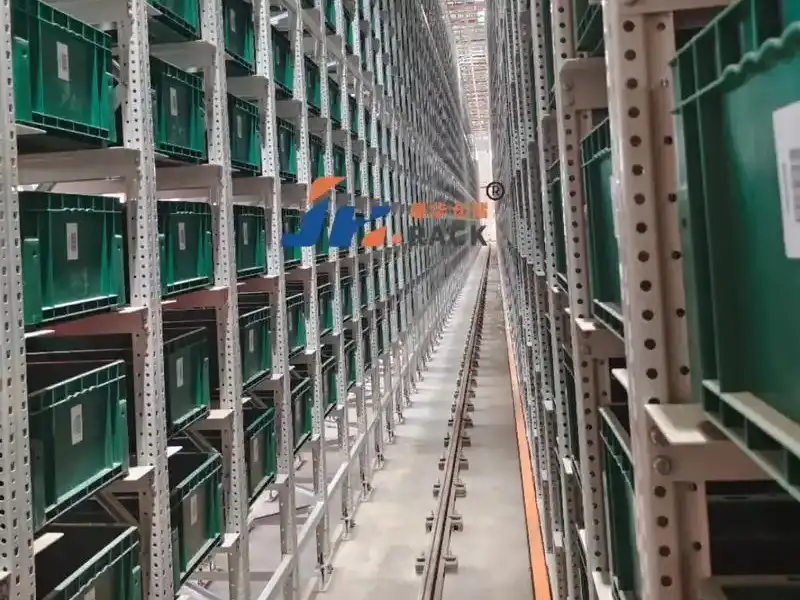

Designed specifically for modern smart logistics and automated warehousing, this series of rails offers exceptional operational precision and smoothness, making it an ideal choice for automated storage and retrieval systems (ASRS), stacker crane tracks, and light-duty material handling lines.
Medium- to Heavy-Duty Industrial Manufacturing (A75 / A100)
Core Applications: Steel Mills | Metallurgical Plants | Heavy Machinery Manufacturing

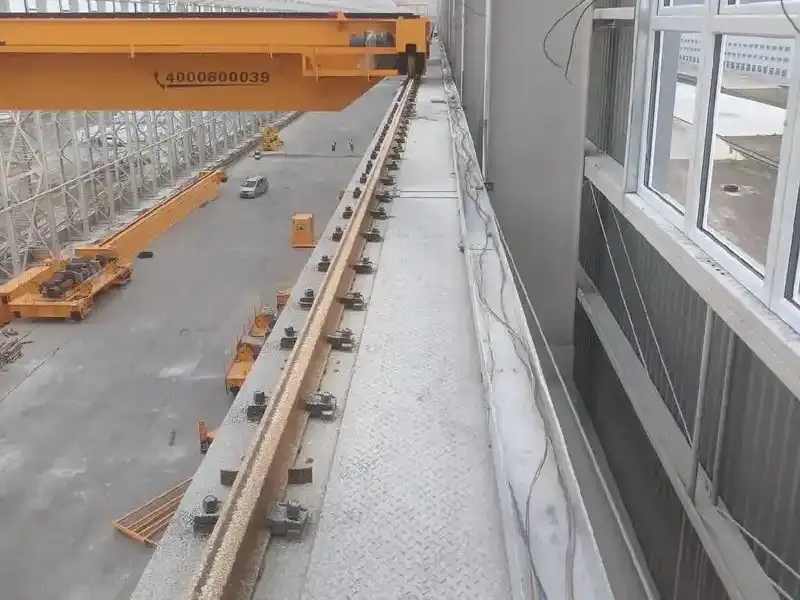

Designed specifically to withstand high-intensity, high-frequency heavy industrial operations. Widely used in bridge cranes and medium-duty gantry crane track systems in steel mills, metallurgical smelting plants, and heavy machinery manufacturing workshops.
Super-Heavy-Duty and Port Terminals
(A120 / A150)
Core Applications: Container Terminals | Shipyard Gantry Cranes | Designed to withstand extremely high wheel loads
Developed specifically to withstand extremely high wheel loads and withstand harsh marine environments. These are the rails of choice for port container ship-to-shore (STS) cranes, rubber-tyred gantry (RTG/RMG) cranes, heavy-duty shipyard gantry cranes, and super-heavy-duty industrial special unloading equipment.
Custom Processing & Machining Services
A perfect track system depends on the precise implementation of crane rail fixing details. Glory Rail offers comprehensive customization services for your crane rail tracks:
Cutting to Length: Precise cutting to any length between 3 meters and 12.5 meters.
End Welding & Milling: We provide flash butt welding and end milling services to ensure seamless joints.
Drilling & Tapping: High-precision bolt hole machining according to installation drawings.
Cold Bending: Bending straight rails to the required curve radius to meet track requirements for curves.

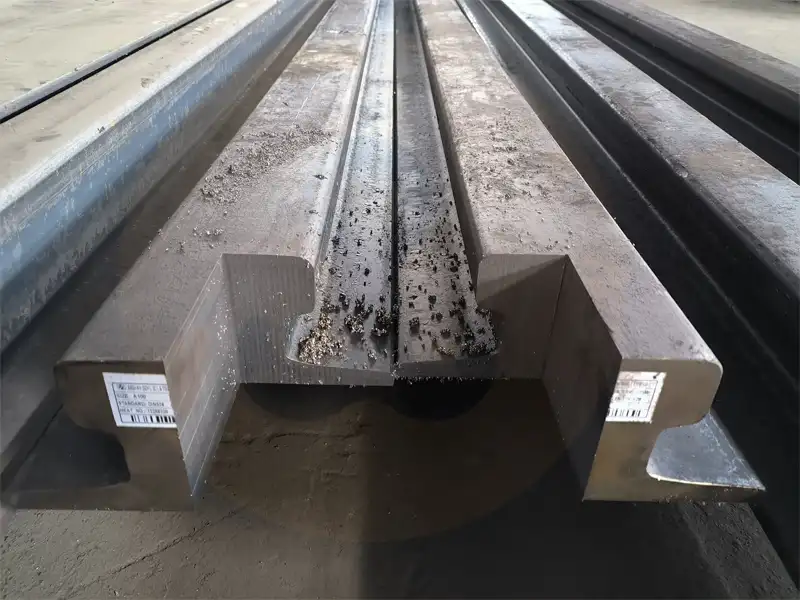

Customized Fabrication for Trolley Rails: Professional manufacturing of short rail sections, beveling, and specific end-matching for small passenger and freight trolley systems, hoists, and compact crane applications
Professional Anti-Rust & Surface Treatment: Multi-stage anti-corrosion solutions for DIN 536 rails, customized according to the operating environment (indoor workshops, coastal ports, open-air yards). Shot blasting & shop primer & zinc-rich epoxy primer & polyurethane topcoat & hot-dip galvanizing
CLIENTS we’ve worked with
How to Work With Us
Inquiry & Technical Alignment
Please submit your technical specifications (such as rail model, length, and custom processing requirements) via the form. Our technical experts will evaluate your request within 24 hours and provide you with precise technical support.
Tailored Quotation & Contract
We provide transparent, competitive commercial quotes and technical drawings. Once all parameters, commercial terms, and delivery dates have been confirmed, both parties will sign a formal cooperation agreement.
Precision Manufacturing & QC
Production is carried out under a rigorous ISO 9001 quality management system. Every step of the process—from raw materials to cutting and drilling—undergoes strict internal quality inspections, and we fully support on-site inspections by third-party organizations (such as SGS and BV).
Packaging & Global Shipping
The rails are packaged in rust-proof, heavy-duty bundles to ensure they arrive undamaged during ocean transport. We arrange the most cost-effective global logistics and provide complete customs clearance documents and a Material Test Certificate (MTC).
Get In Touch
After submitting the form, your dedicated account manager will contact you immediately to provide full-process technical support from selection to installation.
Your Expert in Crane Rail Solutions
To help us provide a faster and more accurate tailored solution, please consider including:
1. Rail Specifications: Rail section type, profile, or standard, and your required unit length.
2. Order Quantity: Total quantity of rails, matching fasteners, or related equipment needed.
3. Material & Grade: Specific steel material requirements or performance grades.
4. Technical Files: Any custom technical requirements, drawings (CAD/PDF), or project specifications.
Don’t have all the details? No worries! Just leave us a message with what you know, and our experts will guide you through the process.
