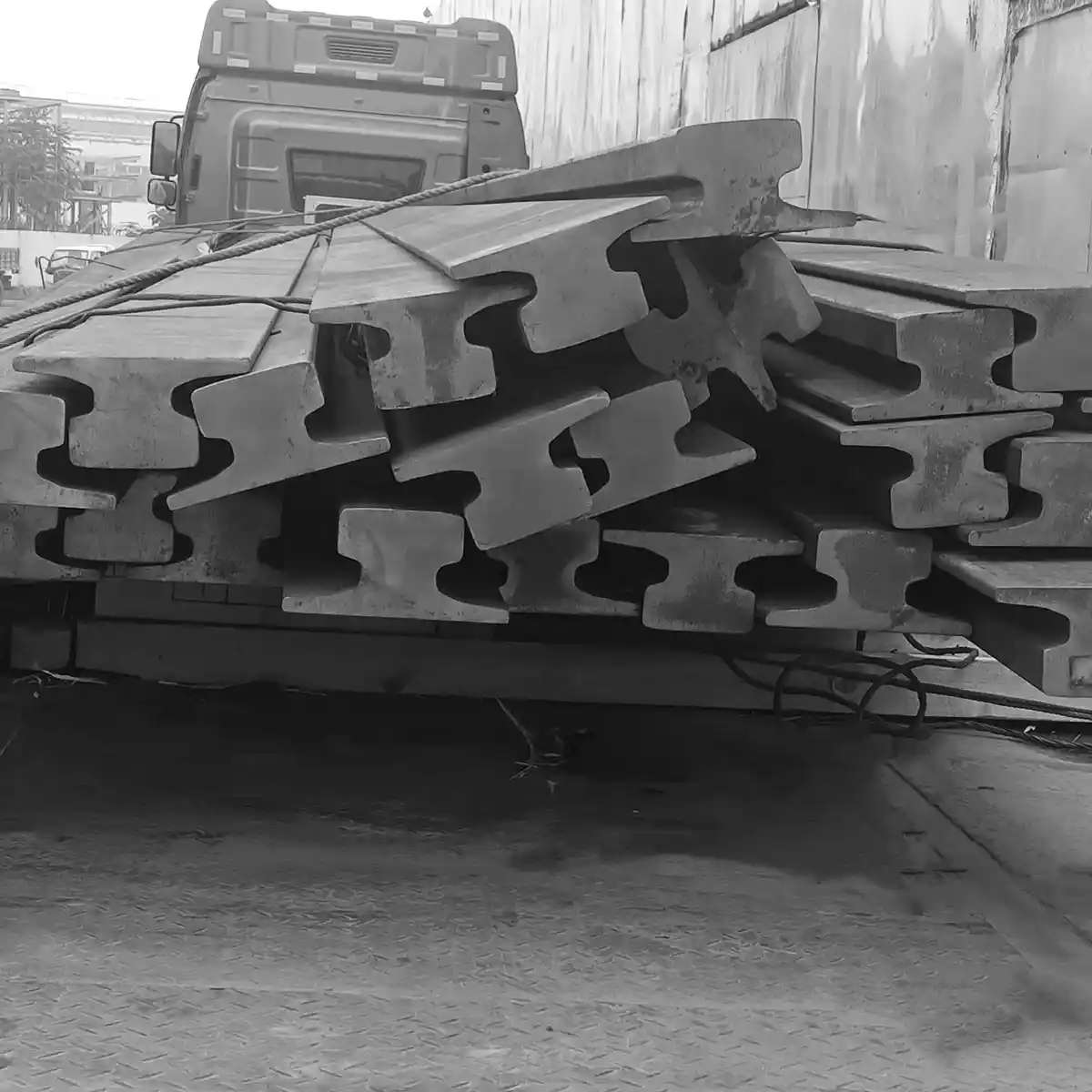

DIN 536 A100 Rail
A100 crane rail, also known as A100 rail, refers to a specific type of rail used for crane systems. A100 crane rail is commonly used in various industrial applications, including ports, shipyards, steel mills, and manufacturing facilities. It is known for its high load-bearing capacity and resistance to wear and tear, making it suitable for heavy-duty operations.
A100 rail is typically made of U71Mn high-strength steel to withstand the stresses and forces imposed by cranes and their loads
The bottom width of the A100 crane track reaches 200mm, which belongs to the wide-bottomed track model. The head width is 100mm. Please confirm whether it matches your device according to its outline size and detailed parameters. Usually pay attention to whether the size of the wheel matches the head width size of the track. If you are not clear about this issue, you can consult your crane supplier or consult GloryRail.
We can provide some reasonable suggestions based on your engineering technical parameters.
GloryRail always has A100 rails in stock. And provide rail clips, rubber pads, steel soleplates, and other accessories needed for the A100 rails. At the same time, we provide rails processing services that include cutting, bending, punching, and short rail. different types of joints.
The Glory Rail team will give you the most timely reply and the most patient support
A100 Rail Basic Dimension
| Rail Profile | Standard | Dimensions | Mass | |||
|---|---|---|---|---|---|---|
| Head Width | Height | Base Width | Web Thickness | |||
| A100 Rail | DIN 536 | 100mm | 95mm | 200mm | 60mm | 74.30 kg/m |
Mechanical properties of DIN 536 A100 Rail
| Materials | Tensile Strength (MPa) | Yield Strength (Mpa) | Elongation | Hardness (HB) |
|---|---|---|---|---|
| U71Mn | ≥ 880 MPa | — | ≥ 9% | — |
A100 Rail Chemical Composition
| Materials | Chemical Composition (%) | ||||
|---|---|---|---|---|---|
| C | Si | Mn | S | P | |
| U71Mn | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤ 0.030 | ≤ 0.030 |
DIN536 Series Crane Rail – Custom Processing Services

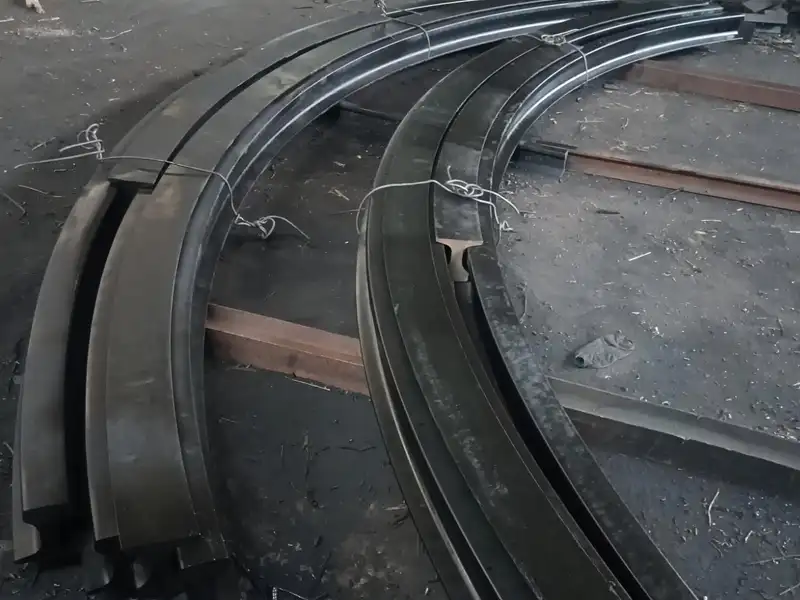

Structural Rail Bending (Curved Track Systems)
Minimum bending radii can be customized according to specific DIN rail specifications (e.g., A75, A100, A150). We offer precision hydraulic bending services to shape rails into smooth arcs without compromising the mechanical properties or structural integrity of the steel.
Precision Cutting & Miter Cutting (30° / 90°)
Based on your layout drawings, we provide burr-free, high-precision straight cuts (90°) and miter cuts (typically 45°). Length tolerances are controlled within ±1.0 mm.
Standard & Custom Rail Drilling
Glory Rail uses CNC equipment to drill standard fishplate bolt holes, grounding holes, or custom high-tolerance joint structures. We can machine blind or through holes according to DIN standards or custom blueprints.
Customized Fabrication for Trolley Rails
Professional manufacturing of short rail sections, beveling, and specific end-matching for small passenger and freight trolley systems, hoists, and compact crane applications
Professional Anti-Rust & Surface Treatment
Multi-stage anti-corrosion solutions for DIN 536 rails, customized according to the operating environment (indoor workshops, coastal ports, open-air yards). Shot blasting & shop primer & zinc-rich epoxy primer & polyurethane topcoat & hot-dip galvanizing
Complete Rail Fastening System & Accessories Supplying
GloryRail offers a complete range of DIN 536 crane rails (A45–A150), along with rail fastening systems and custom fabrication services. We provide one-stop supply solutions for crane projects in ports, steel mills, shipyards, warehousing and logistics, and heavy industry.
Rail Rubber Pads
GloryRail offers both individual rubber pads and continuous rubber pads, suitable for a wide range of crane rail systems. These rubber pads absorb vibrations, cushion impact loads, and evenly distribute wheel pressure, thereby extending the service life of the rails, foundation structures, and fasteners.
Crane Rail Clips
Rail clamps securely fasten the rails while allowing for appropriate movement due to temperature changes and operational loads. We offer welded, bolted, adjustable, and heavy-duty rail clamps suitable for various crane rail models.
Steel Sole Plates & Base Plates
GloryRail offers two types of steel pads and base plates.
Long-type base plates: Provide continuous support and improve wheel load distribution.
Short-type base plate: Suitable for stable positioning in compact support structures.
Anchor Bolts & Rail Fasteners
GloryRail offers anchor bolts, rail bolts, nuts, washers, and a variety of custom rail fasteners. These products provide a reliable connection between the rails, the fastening system, and the concrete foundation, ensuring long-term safe operation.
Rail Fishplates
Fishplates are used to connect rail joints and maintain track continuity and alignment accuracy. We offer both standard and custom-machined products to meet various track standards and project requirements.
Crane Buffers & End Stops
Crane buffers and end stops are designed to absorb impact energy and protect cranes, rails, building structures, and equipment from damage caused by accidental collisions. They are widely used in bridge cranes, gantry cranes, port machinery, and automated material handling systems.
