Nylon Crane Sheave
Material:
MC Nylon, PA6, PA66, PA12, PA6-GF
Diameter:
20mm–300mm standard; custom up to 800mm
Load Capacity:
0.5T–50T (custom up to 100T)
Standards:
ISO, DIN, EN, JIS, GOST, FEM, ANSI

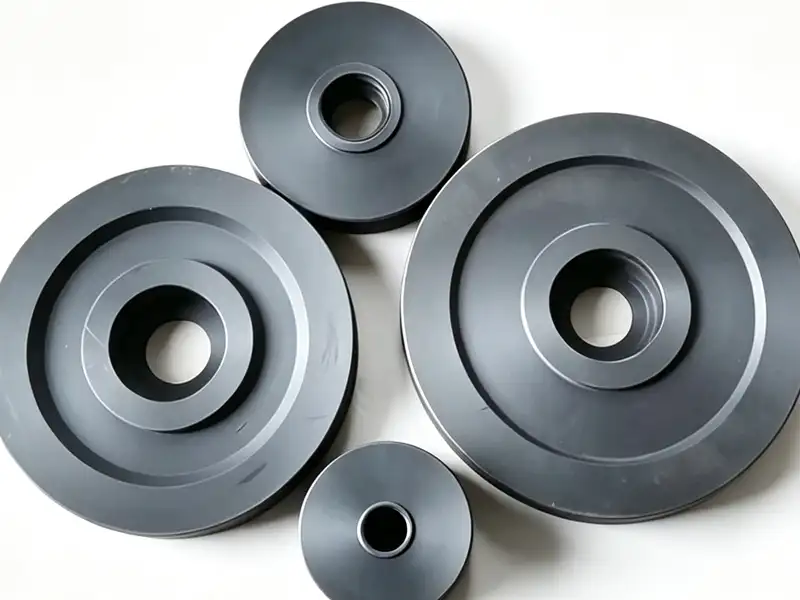

Glory Rail’s MC Nylon Crane Pulleys are specifically designed to meet demanding lifting requirements. Manufactured from high-quality monolithic cast nylon (MC Nylon), PA6, PA66, and reinforced composite materials, these lightweight pulleys offer exceptional wear resistance, self-lubricating properties, and outstanding wire rope protection. Weighing up to 85% less than steel sheaves, our nylon sheaves are the ideal choice for bridge cranes, tower cranes, port machinery, and marine applications.
100% Response Rate | ISO9001 Certified | MTR Report Included
Nylon Pulley Specifications & Dimensions

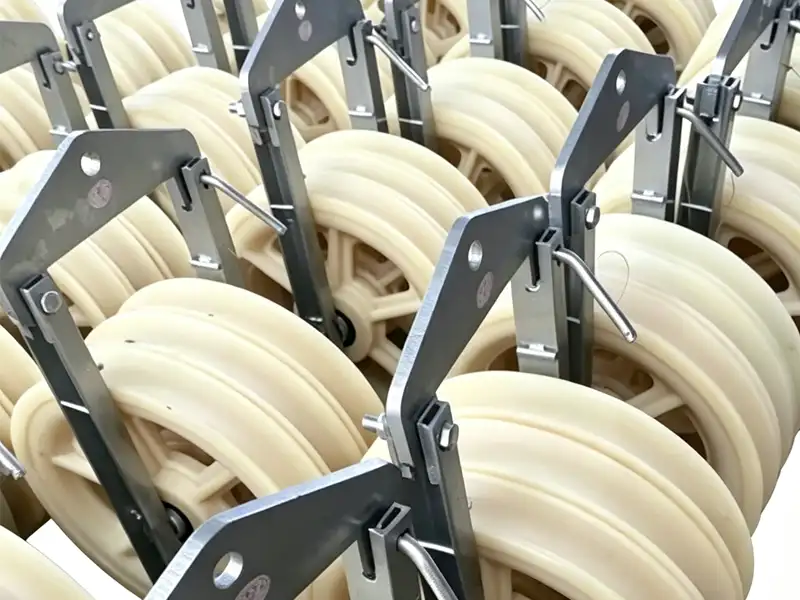

Glory Rail offers standard and custom nylon pulley sizes to match your crane model. From small nylon pulleys for hoist guides to large-diameter nylon winch pulley configurations, our specification sheet covers the most common sizes. All sizes are fully customizable.

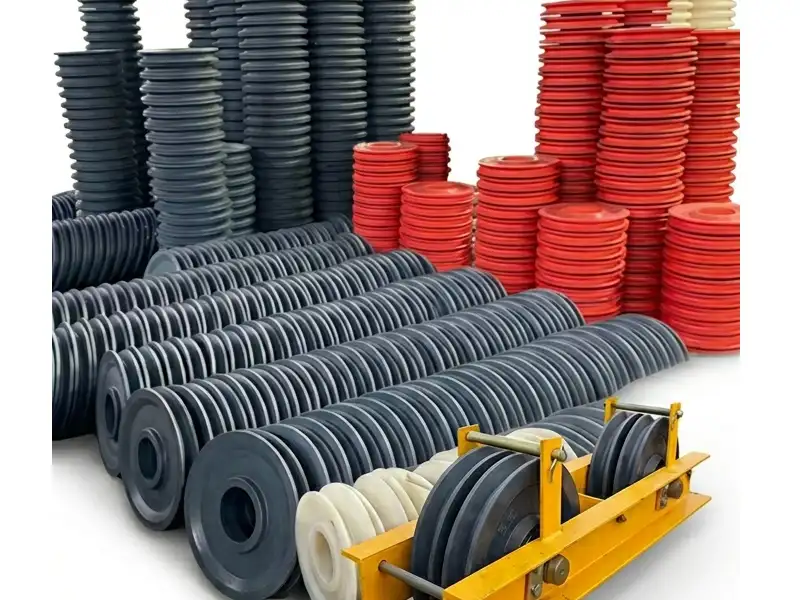

Need to place a bulk order for nylon pulleys for your project? Glory Rail offers wholesale heavy-duty nylon pulleys at factory-direct prices with fast delivery. Send us your drawings or specifications today.
Material Types Available
| Type | Color | Key Properties | Best For |
|---|---|---|---|
| Standard MC Nylon | Ivory/Beige | High strength, stiffness, creep resistance | General heavy-duty applications |
| MC901 (Blue) | Blue | High toughness, fatigue & impact resistance | Mining, heavy lifting |
| Oil-impregnated nylon sheave | Green | 50% lower friction, 10× wear resistance | Unlubricated, low-speed heavy load |
| MoS₂ filled nylon sheave | Dark Grey | Higher load capacity, solid lubrication film | Gears, bearings, high-wear parts |
| Solid-lubricant modified | Grey | 5× wear resistance, high-speed capable | High-speed unlubricated applications |
Nylon Sheave Configurations for Every Crane System
Glory Rail manufactures nylon pulleys in a variety of configurations to match your specific crane design and operating conditions:

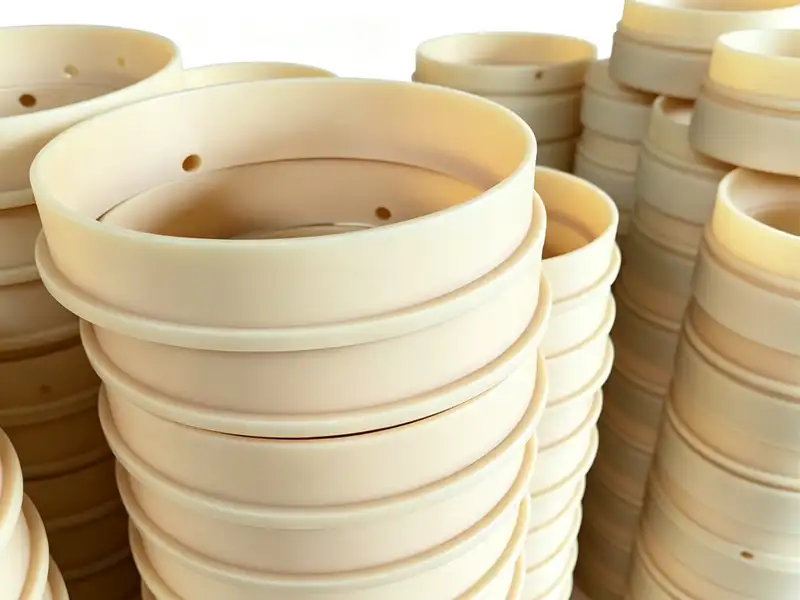

Flanged Nylon Pulley
Features integrated flanges on both sides to prevent the wire rope from slipping out of the groove. Suitable for applications requiring control of lateral wire rope movement, such as bridge crane trolley assemblies and hoist systems.

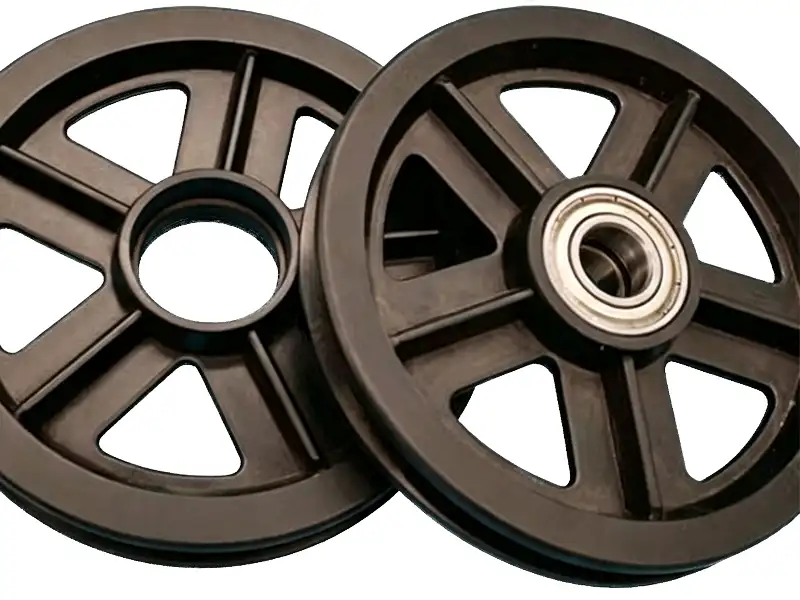

Nylon Sheaves with Bearings

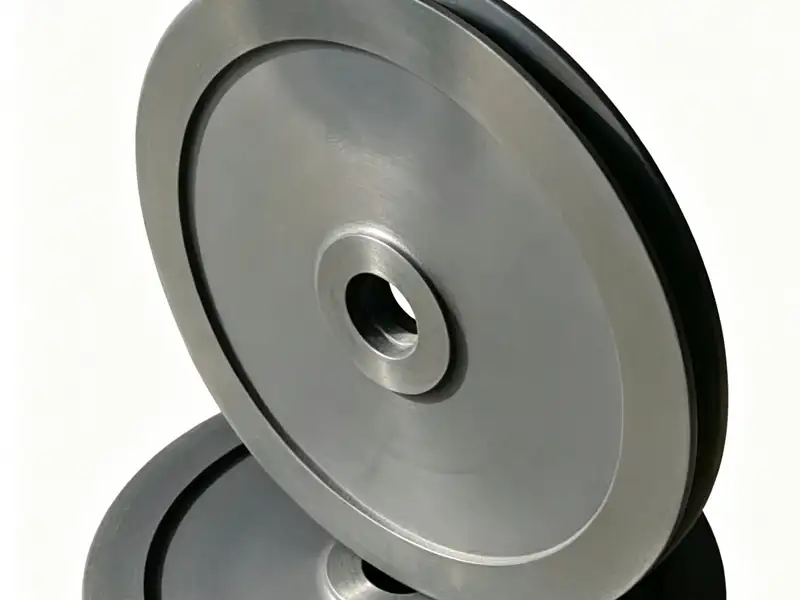

Pre-installed rolling bearings (ball bearings or roller bearings) ensure smooth rotation and reduce journal wear. Our “Self-lubricating Nylon Sheave with Bearing” option combines oil-impregnated nylon with sealed bearings to enable maintenance-free operation.
Steel-Lined Nylon Pulleys
A steel bushing or steel ring is cast into the nylon body, combining the wear resistance of nylon with the structural strength of steel at the load-bearing inner bore. Suitable for heavy-duty applications where the load on a single pulley exceeds 20 metric tons.
Standard U-Channel Nylon Pulley
The most common configuration, featuring a precision-machined U-channel designed to accommodate steel wire ropes. Available in all standard diameters from 200 mm to 415 mm and beyond.
Not sure which nylon sheave configuration is right for your crane? Our engineering team will help you select the appropriate materials, bearing types, and sizes. As a custom nylon crane sheave manufacturer, we offer tailor-made solutions and competitive prices on industrial nylon sheaves for sale.
Why Choose Glory Rail Nylon Pulley Over Metal?
Glory Rail is a professional manufacturer and supplier of crane components with over a decade of extensive experience in the industry. We specialize in providing comprehensive crane rail systems and accessories for industrial projects worldwide.
Our Core Competencies:
80% lighter than steel
With a density of just 1.15 g/cm³, compared to 7.8 g/cm³ for steel, these lightweight nylon pulleys for bridge cranes can reduce the weight at the boom head by up to 70%, lower motor energy consumption, and simplify installation.
Wire Rope Protection
Our nylon sheave wheels for wire rope protection can extend the service life of wire ropes by up to 300%. The lower hardness of the nylon causes the wire rope to form shallow indentations on the surface of the groove, reducing the compressive force between strands and eliminating relative slippage.
Self-lubricating and maintenance-free
Coefficient of friction: 0.1–0.2 (compared to 0.5–0.8 for steel). The oil-impregnated modified version reduces this by an additional 50%. No external lubrication required
Exceptional Wear Resistance
MC Nylon is 8 times more wear-resistant than carbon steel and more than 10 times more wear-resistant than copper. The service life of pulleys is extended by 4–5 times.
Spark-Free Insulation
Nylon does not generate friction sparks during operation—a critical feature for chemical plants, mines, and explosive environments. The non-conductive material also isolates the crane structure from electrical leaks.
Corrosion- and chemical-resistant
Resistant to alkalis, alcohols, ethers, lubricating oils, and seawater. Does not rust and requires no anti-corrosion coating—suitable for cranes in the marine and chemical industries
From prototyping to bulk production of nylon pulley sheaves, Glory Rail delivers consistent quality at scale. We supply wholesale heavy-duty nylon sheaves to fleet operators, crane manufacturers, and maintenance contractors.

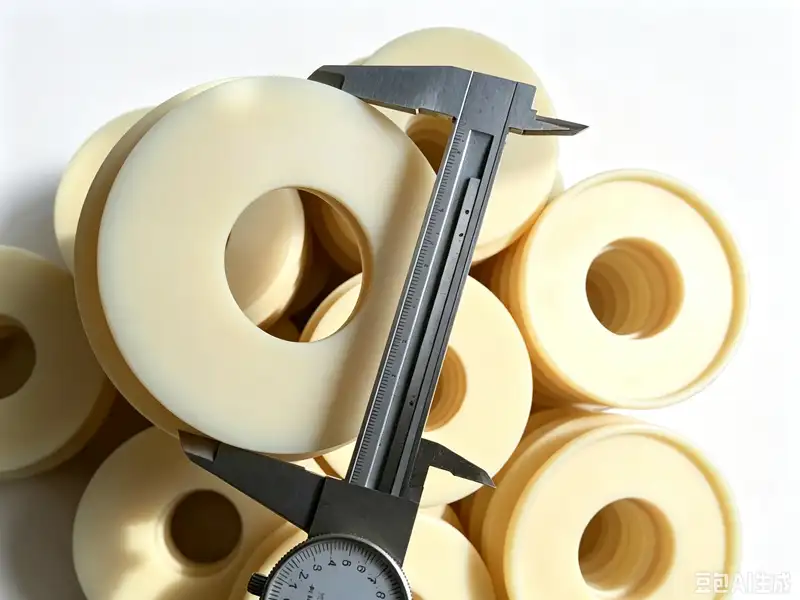

Custom Nylon Crane Sheave Manufacturing by Glory Rail
1
Requirements Review
Please provide your drawings, samples, or crane model specifications. Our engineers will evaluate the materials, dimensions, and load requirements.
2
Material Selection
Choose from standard MC nylon, oil-impregnated nylon pulleys, molybdenum disulfide-filled nylon pulleys, or custom formulations
3
Casting and Machining
After casting the individual parts, CNC precision machining is performed on the rope grooves, inner bores, and flange features. Tolerances range from ±0.01 mm to ±0.1 mm.
4
Assembly and Testing
Optional bearing installation (nylon pulleys with bearings), steel sleeve press-fitting (nylon pulleys with steel sleeves), and dimensional and material inspection with an MTR report
| Capability | Specification |
|---|---|
| Diameter Range | 20mm – 800mm (custom) |
| Material Options | MC Nylon, PA6, PA66, PA12, PA6-GF + modified variants |
| Load Capacity | 0.5T – 100T per sheave |
| Bore Processing | Plain, keyway, tapered, with bearing, with steel insert |
| Groove Type | U-groove (standard), V-groove, custom profile |
| Tolerance | ±0.01mm – ±0.1mm |
| Surface Finish | Smooth polished (Ra ≤ 1.6µm) |
| Minimum Order | 1 piece (sample); bulk order nylon pulley sheave available |
Ready to upgrade your crane with high-quality nylon pulleys?
Get a free, no-obligation quote within 24 hours. Our engineers are on standby to help you select the perfect nylon pulley solution for your application.
