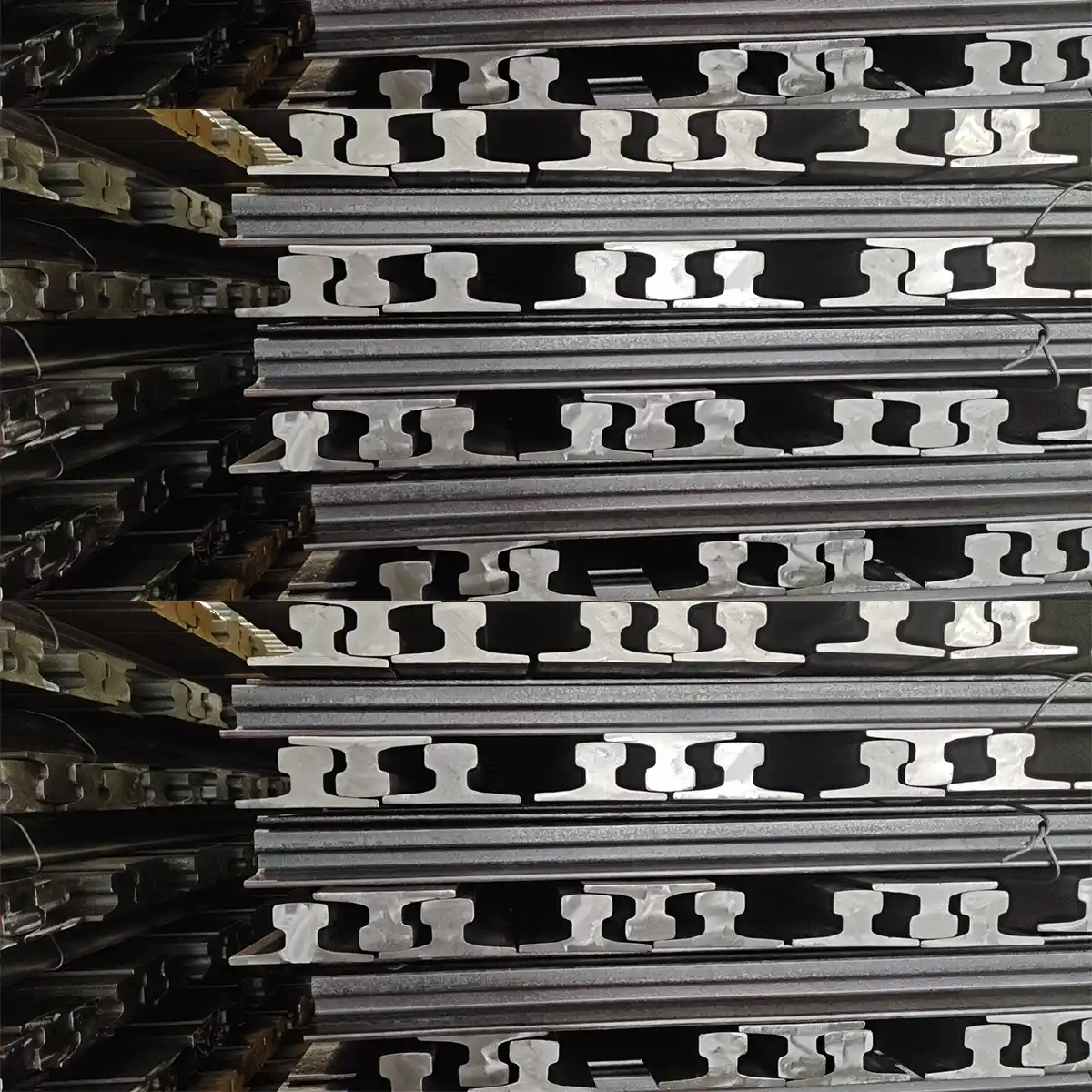

DIN 536 A65 Rail
A65 rail is a smaller model under the DIN536 standard. Head width 65mm. The waist thickness is 38mm. But the bottom width can reach 175mm. It can be used to carry medium-sized cranes and crane equipment. They are usually used for beam cranes in factories, stackers in warehouses, and some small handling equipment.
How to choose a suitable rail clamp, rubber backing plate, steel backing plate, and matching high-strength bolts for Rail A65. GloryRail can provide you with suitable advice and system solutions. And be able to provide the corresponding products and materials.
Glory Rail focuses on the supply of DIN536 crane rail. As one of the most widely used crane rail track models in the world. DIN536 rail plays an important role in the crane rail system. Its flat profile makes it have a very stable structure, and it is one of the most suitable rail models for lifting equipment. Glory Rail has been focusing on the crane rail industry for many years. It has a complete track material inventory. And constantly update and develop related accessories. Our purpose is to provide quality crane rail systems to customers worldwide.
The Glory Rail team will give you the most timely reply and the most patient support

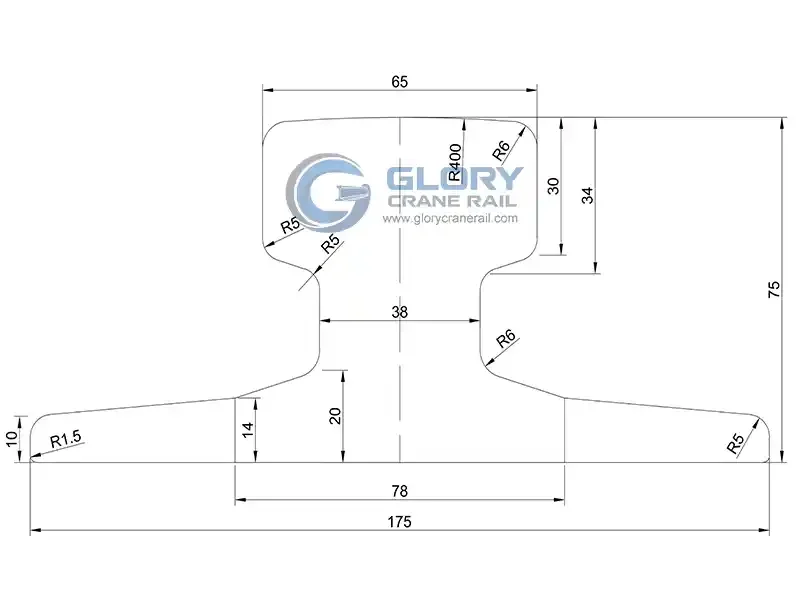

A65 Rail Basic Dimension
| Rail Profile | Standard | Dimensions | Mass | |||
|---|---|---|---|---|---|---|
| Head Width | Height | Base Width | Web Thickness | |||
| A65 Rail | DIN 536 | 65mm | 75mm | 175mm | 38mm | 43.1 kg/m |
Mechanical properties of DIN 536 A65 Rail
| Materials | Tensile Strength (MPa) | Yield Strength (Mpa) | Elongation | Hardness (HB) |
|---|---|---|---|---|
| 50Mn | ≥ 645 MPa | ≥390 | 13% | — |
A65 Rail Chemical Composition
| Materials | Chemical Composition (%) | ||||
|---|---|---|---|---|---|
| C | Si | Mn | S | P | |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | ≤ 0.035 | ≤ 0.035 |
DIN536 Series Crane Rail – Custom Processing Services
Structural Rail Bending (Curved Track Systems)
Minimum bending radii can be customized according to specific DIN rail specifications (e.g., A75, A100, A150). We offer precision hydraulic bending services to shape rails into smooth arcs without compromising the mechanical properties or structural integrity of the steel.
Precision Cutting & Miter Cutting (30° / 90°)
Based on your layout drawings, we provide burr-free, high-precision straight cuts (90°) and miter cuts (typically 45°). Length tolerances are controlled within ±1.0 mm.
Standard & Custom Rail Drilling
Glory Rail uses CNC equipment to drill standard fishplate bolt holes, grounding holes, or custom high-tolerance joint structures. We can machine blind or through holes according to DIN standards or custom blueprints.
Customized Fabrication for Trolley Rails
Professional manufacturing of short rail sections, beveling, and specific end-matching for small passenger and freight trolley systems, hoists, and compact crane applications
Professional Anti-Rust & Surface Treatment
Multi-stage anti-corrosion solutions for DIN 536 rails, customized according to the operating environment (indoor workshops, coastal ports, open-air yards). Shot blasting & shop primer & zinc-rich epoxy primer & polyurethane topcoat & hot-dip galvanizing
Complete Rail Fastening System & Accessories Supplying
GloryRail offers a complete range of DIN 536 crane rails (A45–A150), along with rail fastening systems and custom fabrication services. We provide one-stop supply solutions for crane projects in ports, steel mills, shipyards, warehousing and logistics, and heavy industry.
Rail Rubber Pads
GloryRail offers both individual rubber pads and continuous rubber pads, suitable for a wide range of crane rail systems. These rubber pads absorb vibrations, cushion impact loads, and evenly distribute wheel pressure, thereby extending the service life of the rails, foundation structures, and fasteners.
Crane Rail Clips
Rail clamps securely fasten the rails while allowing for appropriate movement due to temperature changes and operational loads. We offer welded, bolted, adjustable, and heavy-duty rail clamps suitable for various crane rail models.
Steel Sole Plates & Base Plates
GloryRail offers two types of steel pads and base plates.
Long-type base plates: Provide continuous support and improve wheel load distribution.
Short-type base plate: Suitable for stable positioning in compact support structures.
Anchor Bolts & Rail Fasteners
GloryRail offers anchor bolts, rail bolts, nuts, washers, and a variety of custom rail fasteners. These products provide a reliable connection between the rails, the fastening system, and the concrete foundation, ensuring long-term safe operation.
Rail Fishplates
Fishplates are used to connect rail joints and maintain track continuity and alignment accuracy. We offer both standard and custom-machined products to meet various track standards and project requirements.
Crane Buffers & End Stops
Crane buffers and end stops are designed to absorb impact energy and protect cranes, rails, building structures, and equipment from damage caused by accidental collisions. They are widely used in bridge cranes, gantry cranes, port machinery, and automated material handling systems.
