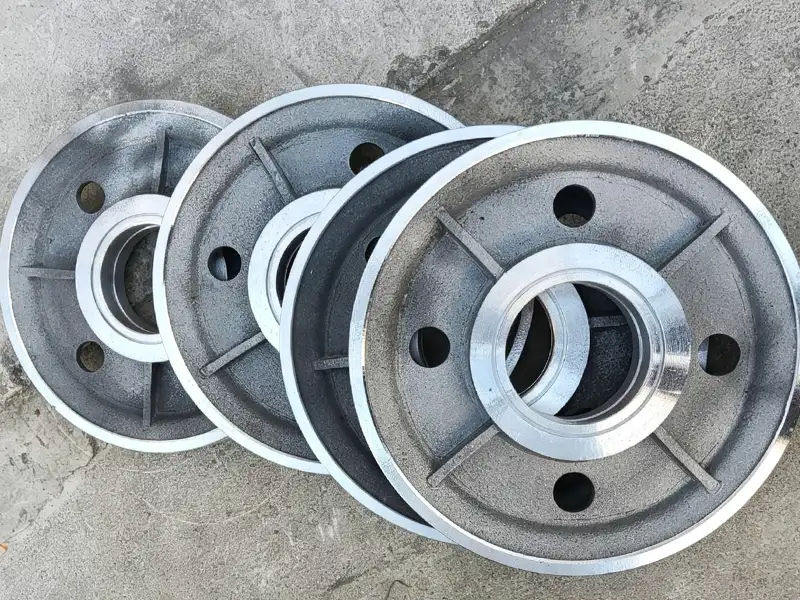

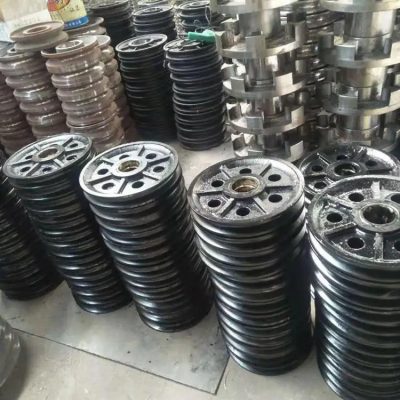

Cast Iron Crane Sheaves
Material:
HT200/HT250/QT400-15
Diameter:
Φ80–Φ620mm(standard)
up to Φ3000mm(custom)
Load:
0.5T–50T
up to 100T (custom)
Standards:
GB/T, ISO, EN, DIN, JIS,
GOST, BS, FEM, ANSI
Glory Rail is a professional cast iron pulley manufacturer that uses the sand casting process to produce cast iron sheaves. The blanks are near-net-shape, ensuring high manufacturing efficiency and controllable costs. As an ISO 9001-certified cast iron sheave manufacturer in China, we provide a Material Test Report (MTR) with every batch of products and offer cast iron sheave factory direct sale prices.Get your custom quote today!
100% Response Rate | ISO9001 Certified | MTR Report Included

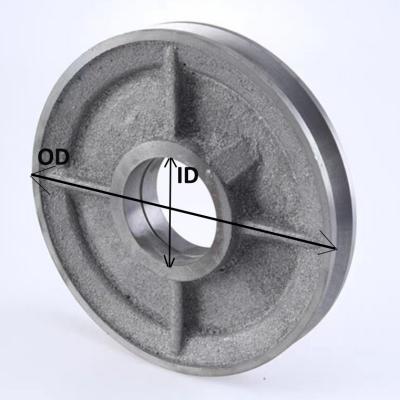

Technical Parameters of Casting Crane Sheaves
Below is the standard specification table for Glory Rail cast iron pulleys. We offer customization for large-diameter cast iron sheave pulleys, with a maximum diameter of Φ3000 mm. All of the following technical parameters for cast crane sheaves can be customized according to customer drawings.
| Spec | O.D. (mm) | Thickness (mm) | Groove Width (mm) | I.D. (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 0.5T | 80 | 21 | 12 | 35 | 0.3 |
| 1T | 100 | 27 | 24 | 42/47 | 0.4 |
| 2T | 140 | 32 | 22 | 52 | 1.1 |
| 3T | 155 | 38 | 25 | 62 | 1.6 |
| 5T | 200 | 45 | 30 | 72 | 3.1 |
| 6T | 220 | 50 | 30 | 80/72 | 4.0 |
| 8T | 240 | 55 | 35 | 90 | 6.7 |
| 10T | 300 | 60 | 45 | 90 | 10.5 |
| 12T | 340 | 70 | 45 | 120 | 15 |
| 16T | 380 | 75 | 47 | 130 | 20 |
| 20T | 435 | 75 | 55 | 150 | 28 |
| 25T | 480 | 110 | 70 | 180 | 50 |
| 32T | 530 | 110 | 70 | 240 | 60 |
| 50T | 620 | 145 | 90 | 160 | 120 |
| Specifications customizable ★ Manual measurement errors may occur | |||||
Get Your Custom Sheave Solution
From design to delivery, Glory Rail offers one-stop manufacturing of **custom cast iron sheaves**
General Parameters
| Parameter | Range |
|---|---|
| Wheel Width (B) | 50mm–300mm |
| Process | Sand Casting |
| Material | Grey Cast Iron / Ductile Iron / Malleable Iron / Alloy Cast Iron |
| Load-Bearing | 3.2T–100T |
| Tolerance | ±0.1mm–±1mm |
| Groove Heat Treatment | Medium-frequency quenching, Hardness ≥ HB350-370, Depth ≥ 2.5mm |
| Diameter Range | Ø250mm–Ø3000mm (Large sizes customizable) |
Material & Grades
Glory Rail cast iron pulley is available in a variety of cast iron materials. Cast iron sheave material grades HT200 and HT250 (gray cast iron) are standard, while QT400-15 ductile iron is suitable for applications with higher stress levels. Each material comes with a Material Test Report (MTR) to ensure traceability of composition and mechanical properties.
| Grade | Standard | Tensile Strength (MPa) | Hardness (HBW) | Compressive Strength (MPa) | Application |
|---|---|---|---|---|---|
| HT200 | GB/T 9439-2023 | 200–300 | 170–220 | 720 | Light Load / Auxiliary Lifting |
| HT250 | GB/T 9439-2023 | 250–350 | 190–240 | 840 | Medium Load / General Lifting |
| QT400-15 | GB/T 1348 | ≥400 | 130–180 | — | High Stress / Impact Conditions |
| ASTM A48 Cl.30 | ASTM A48-2003 | ≥207 (30 ksi) | — | — | North America Export Market |
The vibration-damping capacity of gray cast iron is approximately 5 times that of low-carbon steel and 10 times that of aluminum alloy. This characteristic enables **cast iron sheaves** to effectively absorb vibrations during lifting operations, thereby protecting the wire rope and extending the system’s service life. The HT200 grade has a tensile strength of 200–300 MPa and a compressive strength of 720 MPa; the HT250 grade has a tensile strength of 250–350 MPa and a compressive strength of 840 MPa.
Need Custom Specifications?
Provide drawings or technical specifications, and Glory Rail will provide end-to-end customization for custom cast iron sheaves.
Structural Types
Glory Rail offers cast iron groove pulleys in two main structural configurations to accommodate different load and operating conditions:

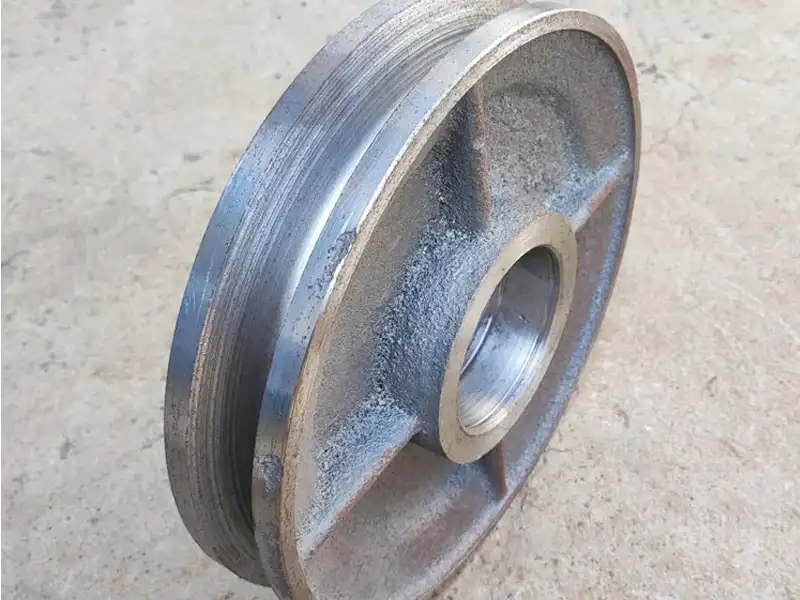

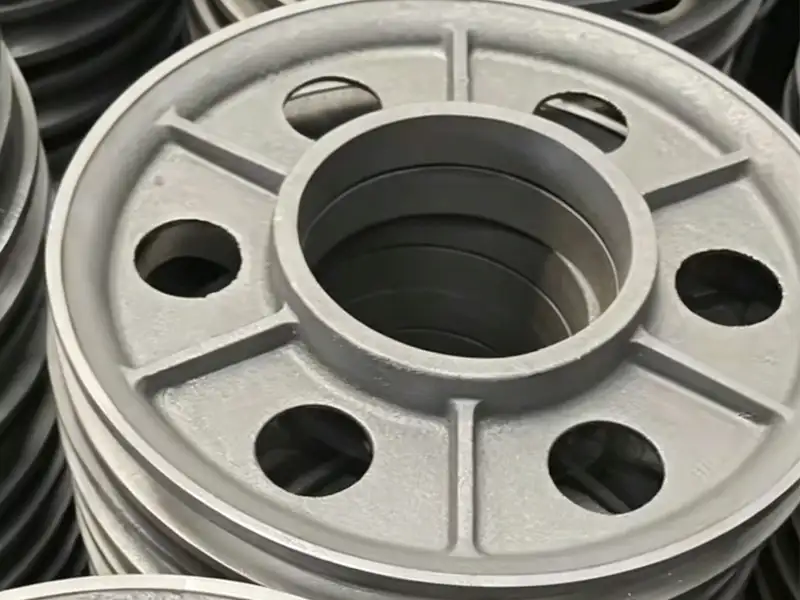

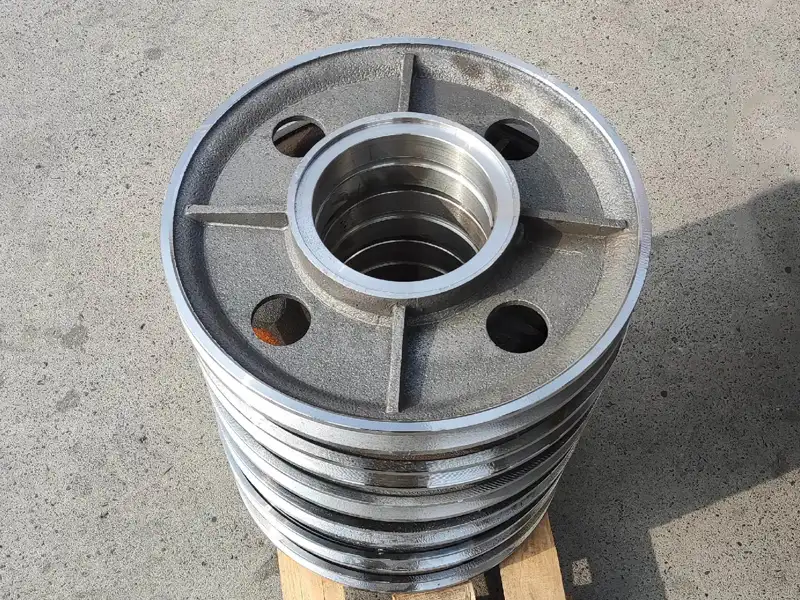

Spoke Type Cast Iron Sheave
The rim and hub are connected by a spoked structure, which reduces the pulley’s weight while maintaining sufficient strength. It is suitable for medium- and light-duty applications where weight is a consideration, such as electric hoists and light-duty winch trolleys.

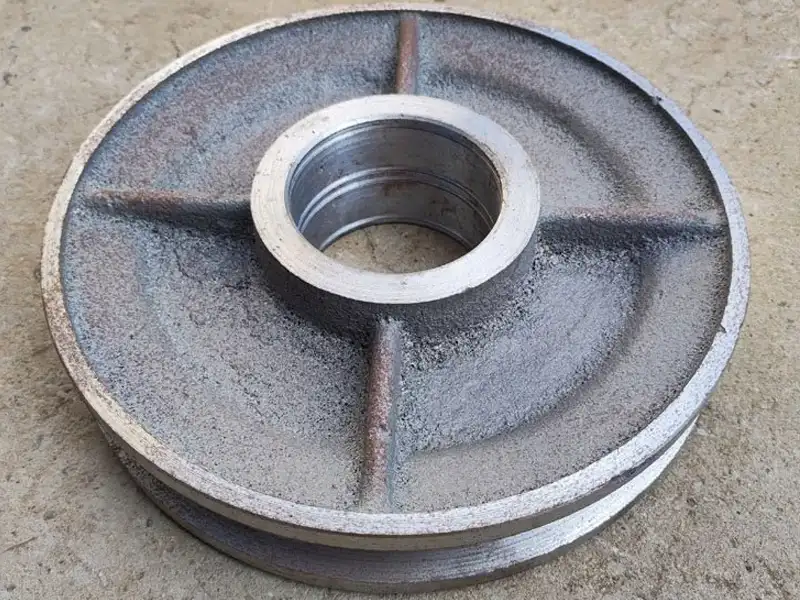

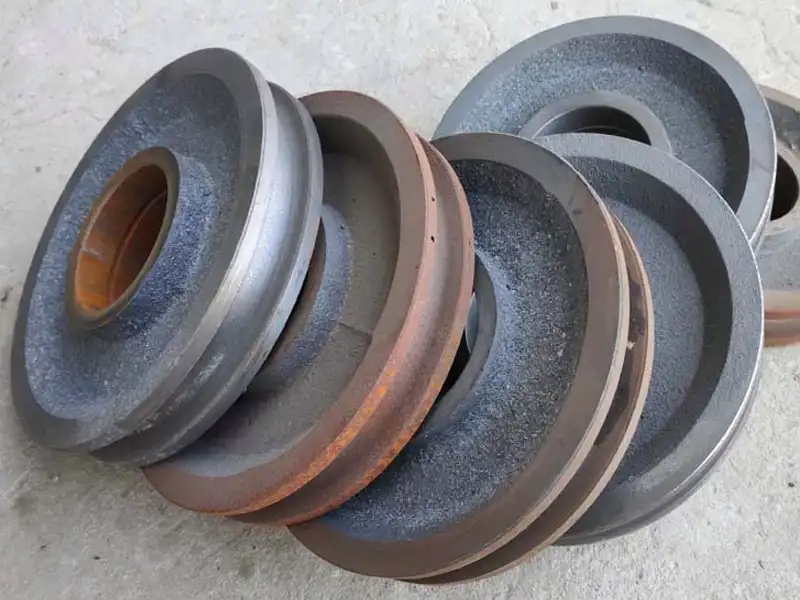

Solid Web Cast Iron Sheave
The area between the rim and the hub features a solid web structure, providing greater structural rigidity and load-bearing capacity. It is suitable for medium- to heavy-duty loads, high-impact applications, or harsh operating conditions.
Groove Profile Selection
Selecting the appropriate sheave groove shape is critical to the service life of cast iron sheave wheels.
Use V-shaped grooves for steel wire ropes;
U-shaped grooves for fiber/braided ropes;
round or semicircular grooves for cables;
and trapezoidal grooves for multi-v-belts.
V-shaped or trapezoidal grooves are recommended for heavy-duty equipment to withstand high loads, while U-shaped grooves are recommended for light-duty equipment to reduce wear.
Features of Cast Iron Pulleys
As the best cast iron sheave for industrial use, Glory Rail’s casting crane sheaves offer four key advantages:
Lower Cost: The low cost of raw materials for gray cast iron and ductile cast iron, combined with mature casting processes and short production cycles, gives cast iron sheave factory direct sales a significant price advantage.
Good Castability: Cast iron has good internal fluidity, making it easy to cast complex shapes; its low shrinkage rate reduces internal defects such as shrinkage cavities and gas pores, resulting in castings with greater durability.
Excellent Wear Resistance: Gray cast iron contains 2%–4% carbon and 1%–3% silicon, giving the **Excellent wear resistance cast iron sheave** outstanding wear resistance, making it suitable for high-wear applications.
Good Vibration Damping: The compressive strength of gray cast iron is approximately 3–4 times its tensile strength, while ductile iron has a higher modulus of elasticity and impact toughness, and its vibration-damping properties effectively protect the steel wire rope.

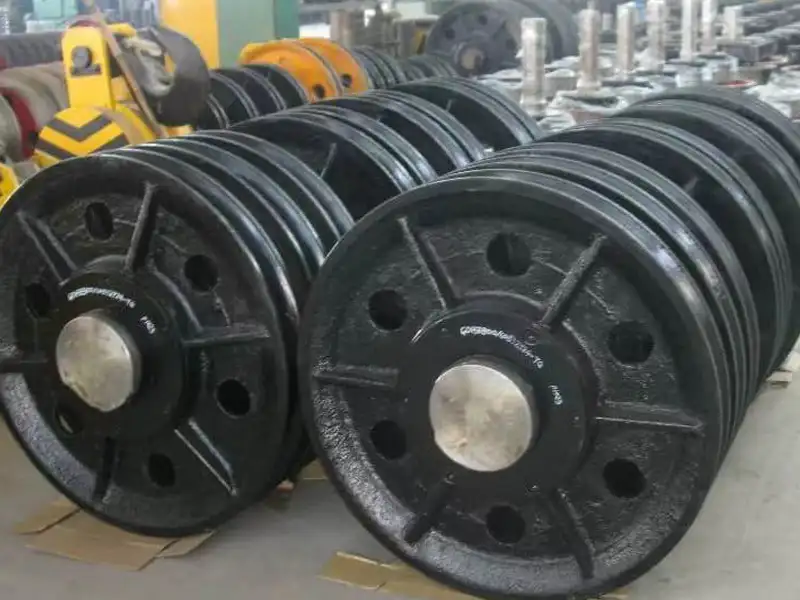

Factory Direct, Free Samples
As a cast iron sheave manufacturer in China, Glory Rail offers factory-direct pricing and free sample testing.
