ASCE 75 Rail

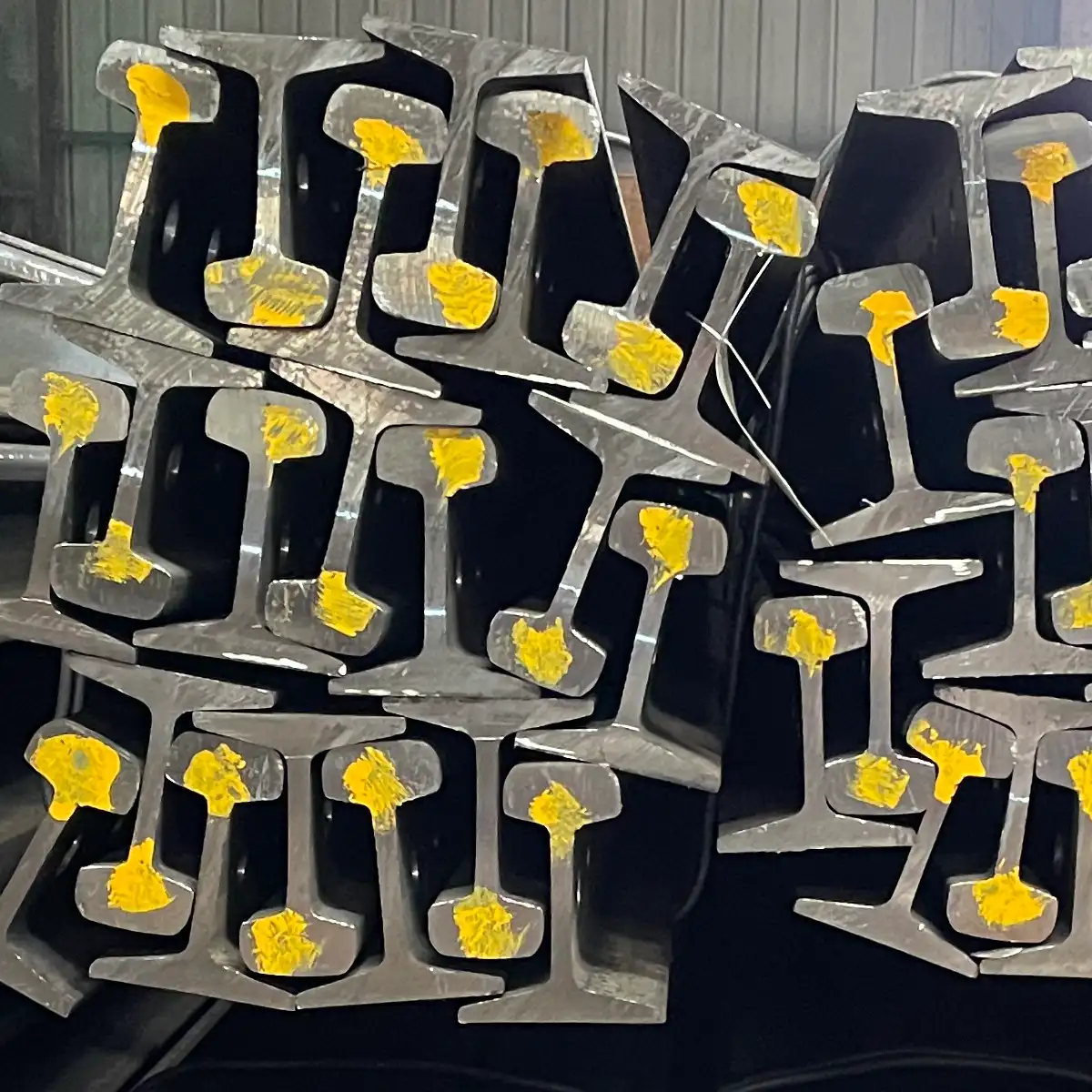

ASCE 75 rail (also known as 75 lb crane rail or 75 lb ASCE rail) is a flat-bottomed T-section crane rail conforming to American standards, with a nominal unit weight of 37.20 kg/m (75 lb/yd). Since its nominal weight is no less than 60 lb/yd, the ASTM A1 ASCE 75 rail falls within the scope of this standard for carbon steel T-section rails and can be used in applications such as bridge cranes, gantry cranes, transfer cars, and industrial tracks, where higher wheel load and stability requirements are needed.
As an ASCE 75 rail manufacturer and system integrator, Glory Rail offers ASCE 75 rail in stock, custom-length, rail drilling services, and ASCE 75 rail fabrication services, along with a complementary crane rail fastening system. All orders are delivered with technical documentation, including cross-sectional diagrams, an ASCE 75 rail size chart, drilling diagrams.
Whether you are installing a new crane rail system or replacing existing rails, we can assist you in verifying the required ASCE 75 rail specifications and clarifying the technical information that needs to be confirmed prior to production and delivery.
Quick System Match: Find the Right ASCE 75 Rail Solution
Select your project requirements below, and our engineering team will provide a customized rail, clip, and pad configuration within 12 hours.

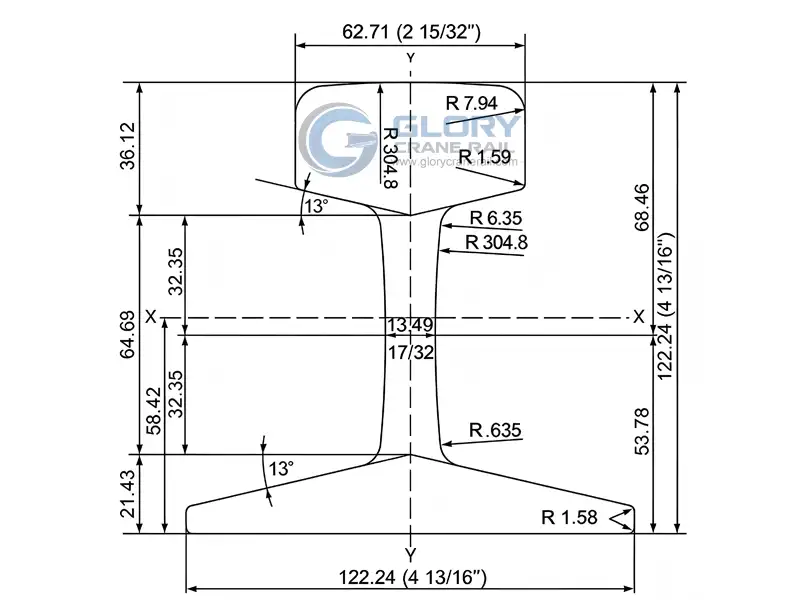

ASCE 75 Rail Basic Dimension
Before finalizing the rail selection, verify the key ASCE 75 rail dimensions. The table below lists the basic parameters for common 75 lb ASCE rail cross-sections. Before placing an official purchase order, verify the specific rail type using the approved cross-section drawings.
| Rail Profile | Standard | Dimensions | Mass | |||
|---|---|---|---|---|---|---|
| Head Width | Height | Base Width | Web Thickness | |||
| ASCE 75 Rail | ASTM A1/ AREMA | 62.71mm | 122.24mm | 122.24mm | 13.49mm | 37.2 kg/m |
Unit Weight Conversion: The ASCE 75 rail weight per meter is 37.20 kg/m; in imperial units, 75 lb/yd is equivalent to 25 lb per foot (75 ÷ 3). The conversion factor is 1 lb/yd = 0.4960546 kg/m [S4]. Calculating backward from the nominal mass and the density of steel (7.85 g/cm³), the cross-sectional area is approximately 47.39 cm² [S5], which can be used to estimate the weight of a single rail and determine the appropriate transport load.
Mechanical properties of 75 LB ASCE Rail
The mechanical properties of ASCE 25 rail material depend on the actual grade of steel supplied and the applicable material specifications. Glory Rail verifies material requirements based on the project’s technical documentation and provides the corresponding material certification documents as specified in the order.
| Materials | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation | Hardness (HB) |
|---|---|---|---|---|
| U71Mn | ≥ 880 MPa | ≥ 390 MPa | ≥ 9% | — |
ASCE 75 Rail Chemical Composition
| Materials | Chemical Composition (%) | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | S | P | Cr | Ni | Cu | |
| U71Mn | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤ 0.030 | ≤ 0.030 | ≤ 0.250 | ≤ 0.250 | ≤ 0.250 |
Equivalents & Cross-Reference
ASCE 75 rail has equivalent or similar cross-sections in multiple standards systems. Glory Rail recommends that for any replacement project involving existing wheels, clamps, or foundations, the width of the rail head and the width of the rail web must first be verified against the cross-section drawings before determining whether a direct replacement is possible.
| Standards System | Equivalent | Relationship | Note |
|---|---|---|---|
| JIS | JIS 37A | Equivalent | The nominal mass is essentially the same as the cross-sectional area, and it is often used as a substitute in Asian projects. |
| TR-Series | TR37 | Equivalent | Equivalent to ASCE 75; commonly used terminology for projects in the Middle East and Turkey |
| DIN 536 | A55/A65 | Comparable | The cross-sections are not exactly the same; the rail base width and the fixture interface must be verified. |
| GB Series | QU70 | Comparable | Although the load capacities are similar, the differences in cross-sectional dimensions must be verified. |
| ASCE-Series | ASCE 60/ASCE 80/ASCE 85 | From the same series | Comparison Criteria When Upgrading or Downgrading a Model |
ASCE 75 Rail Applications and Engineering Selection
When selecting ASCE 75 Rail, consider wheel load, wheel-rail matching, support conditions, and fastening requirements, and verify the relevant parameters before confirming the rail type.
Wheel Loads
Verify the maximum wheel load, operating speed, and dynamic load factor, and perform calculations in accordance with CMAA 74 / FEM 1.001 / GB/T 3811.
Rail & Wheel Fit
Verify that the rail head width of 62.71 mm matches the wheel tread width, flange clearance, and flange guidance method
Support & Fastening
Determine the support spacing, shim type (long shim/short shim), and fastening method (welded/bolted/adjustable)
Joints & Installation
Determine the locations of the tail plates, welded joints, expansion joints, and holes, as well as the installation tolerances
Glory Rail can assist in conducting a preliminary review of track specifications and system compatibility based on the equipment parameters, track layout diagrams, and installation requirements provided by the customer.
Engineering Note: The suitability of a rail must be verified based on the project’s actual loads, support conditions, and relevant design requirements; it cannot be determined solely by the rail model.
Not sure if ASCE 75 rail is suitable for your equipment?
Please provide the equipment type, wheel load information, operating conditions, and support layout.
Glory Rail can assist with a preliminary review of track specifications and system compatibility, and identify technical
points requiring further verification—this technical review service is provided free of charge by Glory Rail’s Engineering Department.
ASCE Rail – Custom Processing Services
Glory Rail offers project-specific ASCE 75 rail fabrication services to help customers align rail supply specifications with approved drawings and on-site installation requirements. Depending on the specific rail type and fabrication feasibility, we provide services such as cut-to-length cutting, drilling, end machining, and surface treatment.
Precision Length Cutting
For custom-length ASCE 75 rails, customers may specify the length of each rail, the quantity, the end profiles, the hole locations, and the dimensional tolerance requirements. Our technical team will verify these specifications prior to machining to ensure that the machining requirements are clear and consistent with the project drawings.
Miter Cutting / Beveling
Supports 45° / 60° bevel cuts at the ends of rails (for expansion joints or smooth joints), as well as beveling for welding (beveled ends for thermite/flash butt welding).
Custom Drilling & Punching
Holes are drilled with precision according to customer drawings, strictly adhering to the ASCE rail drilling pattern specifications for hole spacing and diameter. We support two-hole, four-hole, and non-standard irregular hole patterns.
Rail Bending & Curving
Glory Rail provide horizontal and vertical cold-bending and arc-forming services for curves in industrial facilities, amusement park rides, and mining tracks.
Surface Coating & Treatment
Paint coating, sandblasting for rust removal, application of rust-preventive oil, or hot-dip galvanizing extend the service life in harsh environments.
Chamfering & Deburring
The rail ends are chamfered (2–5 mm × 45°) to prevent damage to the wheel flange during wheel transition. All drilled holes and cut edges are thoroughly deburred to ensure safe handling and installation.
Need a Non-Standard Length or Custom Machining?
Tell us your required rail lengths, quantities, hole patterns, rail-end configurations, and dimensional tolerances.
Glory Rail can review the processing requirements against your project drawings and manufacturing feasibility.
Complete Rail Fastening System & Accessories Supplying
Glory Rail offers a complete range of ASCE crane rails (ASCE20-ASCE85), along with rail fastening systems and custom fabrication services. We provide one-stop supply solutions for crane projects in ports, steel mills, shipyards, warehousing and logistics, and heavy industry.
Glory Rail offers both individual rubber pads and continuous rubber pads, suitable for a wide range of crane rail systems. These rubber pads absorb vibrations, cushion impact loads, and evenly distribute wheel pressure, thereby extending the service life of the rails, foundation structures, and fasteners.
Rail clamps securely fasten the rails while allowing for appropriate movement due to temperature changes and operational loads. We offer welded, bolted, adjustable, and heavy-duty rail clamps suitable for various crane rail models.
Steel Sole Plates & Base Plates
Glory Rail offers two types of steel pads and base plates.
Long-type base plates: Provide continuous support and improve wheel load distribution.
Short-type base plate: Suitable for stable positioning in compact support structures.
Anchor Bolts & Rail Fasteners
Glory Rail offers anchor bolts, rail bolts, nuts, washers, and a variety of custom rail fasteners. These products provide a reliable connection between the rails, the fastening system, and the concrete foundation, ensuring long-term safe operation.
Rail Fishplates
Fishplates(Joint bars) are used to connect rail joints and maintain track continuity and alignment accuracy. We offer both standard and custom-machined products to meet various track standards and project requirements.
Crane Buffers & End Stops
Crane buffers and end stops are designed to absorb impact energy and protect cranes, rails, building structures, and equipment from damage caused by accidental collisions. They are widely used in bridge cranes, gantry cranes, port machinery, and automated material handling systems.
Avoid mismatch risks. Every ASCE 75 rail system requires precisely matched clips, pads,
and baseplates to ensure load distribution and extend service life.
FAQ
ASCE 75 rail is a flat-bottomed T-shaped crane rail conforming to the ASCE standard, with a nominal unit weight of 37.20 kg/m (75 lb/yd); it is also known as 75 lb crane rail or 75 lb ASCE rail, and is equivalent to JIS 37 and TR37.
Yes. Glory Rail offers custom-length cutting of ASCE 75 rails (tolerance ±1 mm) and ASCE 75 rail drilling services, processing two-hole, four-hole, and non-standard hole patterns according to approved drawings, as well as a full range of value-added ASCE 75 rail fabrication services.
Standard ASCE 75 rail specifications are in stock and shipped from our warehouse in Hebei; we support both small-batch sample orders and full-batch project shipments. Non-standard lengths and custom processing are scheduled based on project requirements.
This must be determined based on wheel load, operating frequency, support type (steel girder or concrete foundation), and temperature displacement requirements. Glory Rail offers a complete ASCE 75 rail fastening system, including clamping plates, rubber pads, steel pads, anchor bolts, fishplates, and buffer stops, and can provide a configuration list.
Yes, but the wheel pressure and rail must first be verified in accordance with CMAA 74 / FEM 1.001 / GB/T 3811. For heavy-load and high-frequency operating conditions, it is recommended to use Grade 880 / 1080 heat-treated steel, along with heavy-duty clamping plates and continuous shims.
