Crane Wire Rope Drums Manufacturer and Exporter
High-Quality Solutions for Hoisting Mechanisms

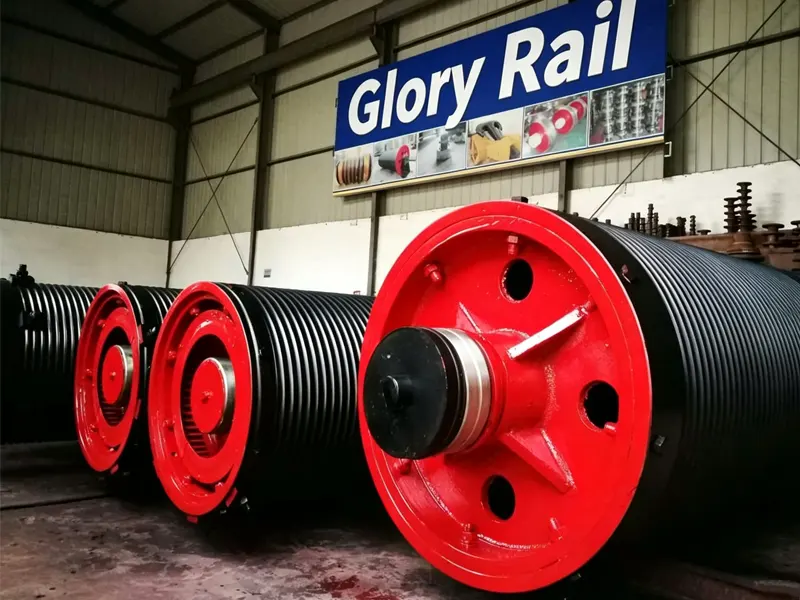

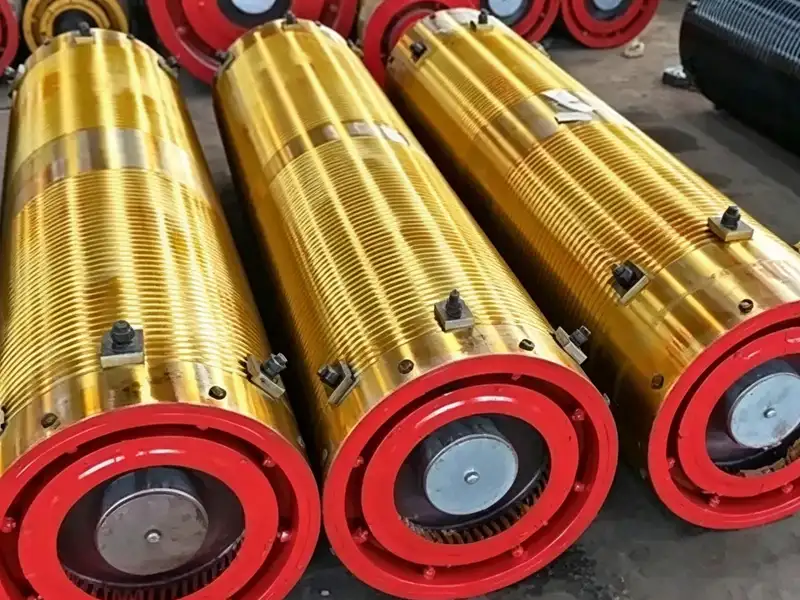

Welded Crane Drums
Lightweight & Fully Customizable
Cast Crane Drums
Mature Integrated Casting Technology
Built for Heavy Industry
Extend the Life of Steel Ropes by Using Hardened Drums
High-Performance Crane Drums for Overhead and Gantry Cranes

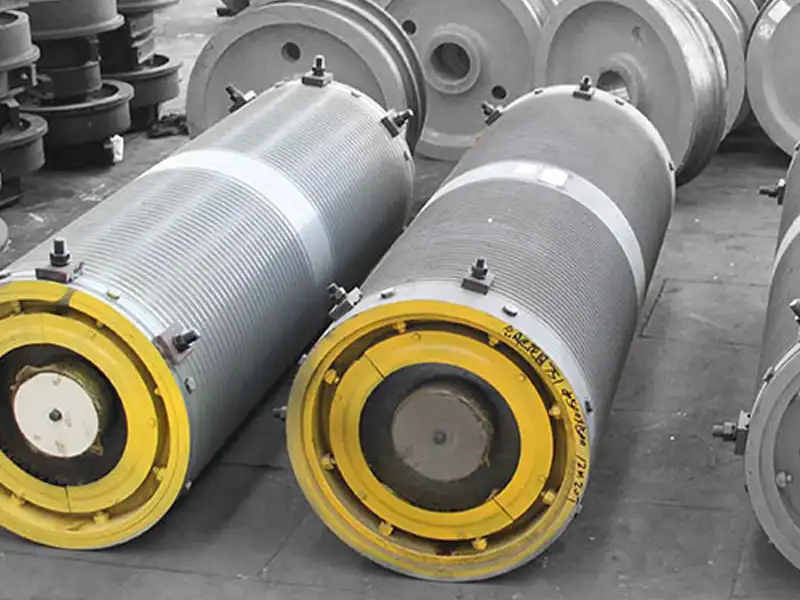

Standard Overhead And Gantry Crane Drums
Size & Materials: Diameter 300 mm–3,000 mm; materials include Q235B, Q345B, and Q355 steel, as well as 45# steel.
Heat Treatment: Normalizing, high-frequency quenching, carburizing quenching, induction hardening, etc.
Quenched Groove Surface: HRC 45–55 (standard) or 55–60+ HRC (optional); hardened layer depth greater than 2 mm (standard) or 2.5–3.8 mm (optional)
Machining Precision: Precision CNC lathe machining ensures groove tolerances within ±0.05 mm
Key Features of Our Crane Rope Drums
Lifespan:
Extend wire rope life with hardened drums. Our grooves are deep-hardened (to a depth of 2.5–3.8 mm, with optional hardness exceeding 60 HRC), which minimizes friction and groove wear and prevents premature wire rope failure.
Maintenance:
Reduce long-term crane maintenance costs. Durable, precision-machined drums prevent wire rope misalignment and crushing, ensuring smooth operation of the entire hoisting system.
Structural Integrity:
Superior to traditional cast iron rope drums. Our welded rope drums are made from Q235B, Q345B, and Q355 steel plates and undergo 100% ultrasonic testing (UT), providing greater strength and reliability for heavy-duty applications.
Comprehensive Crane Drum Solutions for Diverse Industries
Glory Rail categorizes crane wire rope drums into multiple customized engineering grades to perfectly suit various industrial applications. From lightweight warehouse hoists to crane rope drums designed for the most demanding metallurgical applications, we strike the perfect balance between lightweight design and exceptional structural rigidity.
Standard Overhead & Gantry Cranes
Designed specifically for standard lifting applications. Our precision-machined drums ensure smooth operation, reduce the frequency of crane maintenance, and provide a cost-effective and reliable solution for general manufacturing and warehousing.
Metallurgical & Heavy Industry
Designed specifically to withstand extreme high temperatures, heavy loads, and continuous duty cycles. Glory Rail’s welded rope drums, manufactured from Q235B, Q345B, and Q355 steel, undergo rigorous UT testing and fully meet the most stringent technical specifications for metallurgical crane rope drums.
Port & Marine Engineering

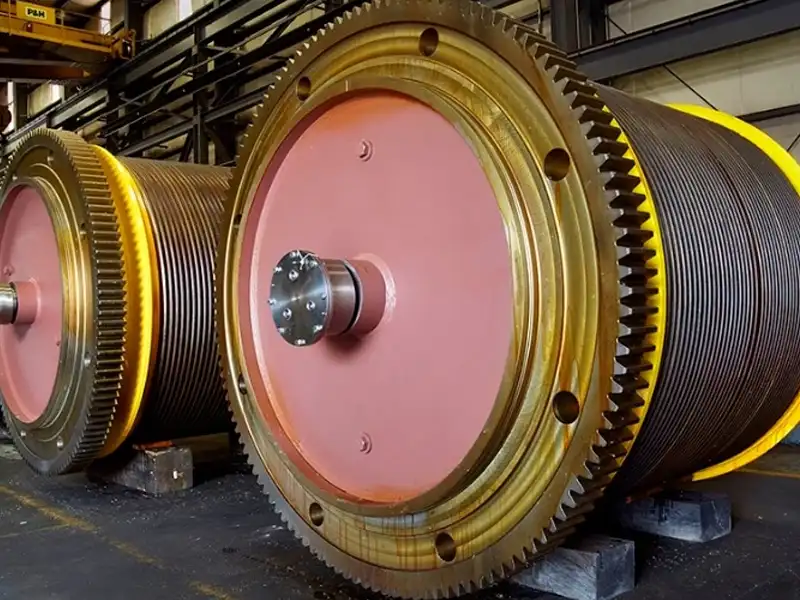

Designed specifically for extreme lifting heights and heavy payloads. Glory Rai specializes in manufacturing extra-large-diameter drums with multi-layer winding capabilities, ensuring maximum safety and efficiency in port operations.

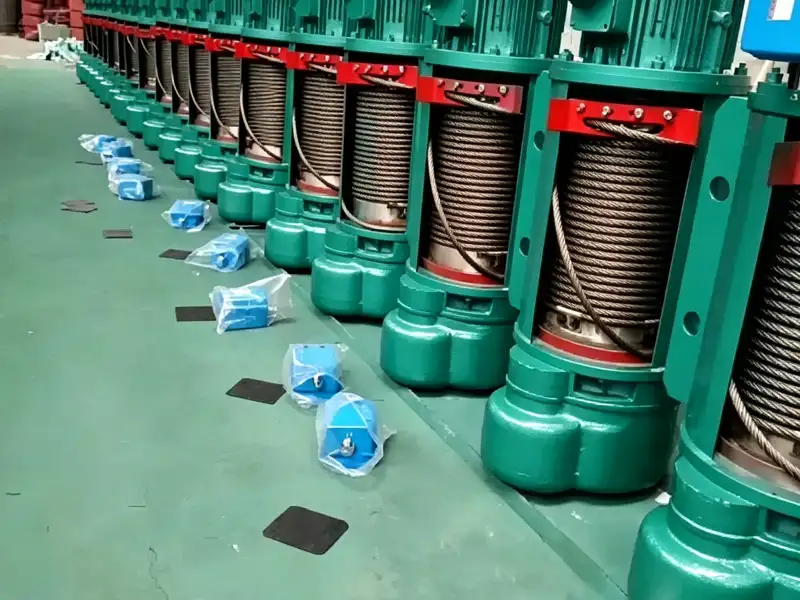

High-Quality Wire Rope Drums for Hoisting Unit
Designed specifically for high-wear and high-tension environments. Glory Rail’s advanced carburizing and quenching and induction hardening processes deliver exceptional groove surface hardness (HRC 55–60+), significantly reducing groove wear and downtime.
Classifaction of Crane Drums
Smooth Surface (Smooth Drum): Used only for multi-layer spooling. It allows for greater wire rope capacity, but uncontrolled winding can lead to rapid wear on the wire rope. Not recommended for applications designed to extend wire rope life with hardened drums.
Grooved Surface (Grooved Drum)
The standard configuration for guiding wire rope. Includes:
Spiral Grooves: Used for single-layer or multi-layer winding. Precision-machined via CNC lathe to ensure perfect wire rope alignment.
Deep Grooves: Used for single-layer winding to maximize wire rope life. The groove surface hardness is enhanced through induction hardening or carburizing to minimize groove wear.
Broken-Line Grooves: Designed for multi-layer winding, providing smoother transitions and less wire rope damage compared to smooth-surface drums. Ideal for custom large-diameter steel plate rope drum applications requiring high lifting heights.

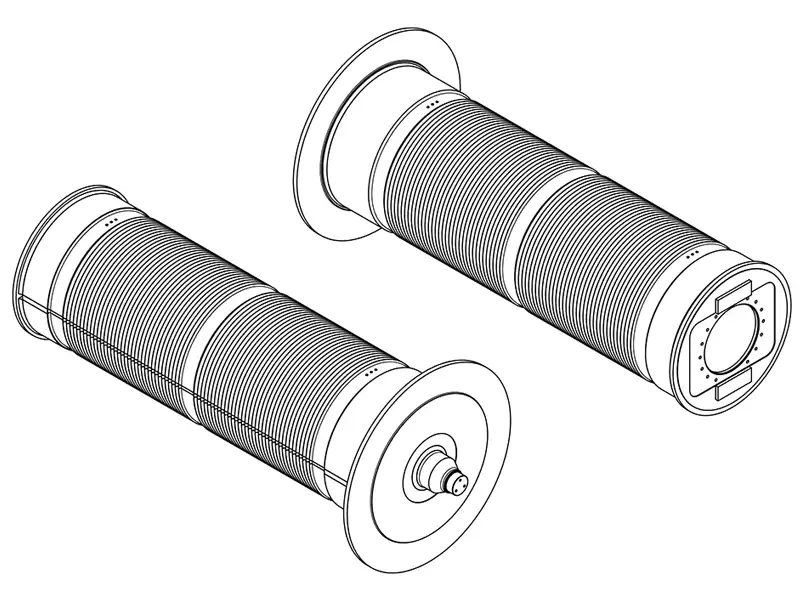

Long-Shaft Drum Assembly
A traditional configuration in which multiple drums share a single long shaft, typically using gear-coupled flanges or external gears. The structure is robust but installation and maintenance are complex. Suitable for heavy-duty metallurgical crane rope drum specifications requiring synchronized operation.
Short-Shaft Drum Assembly
A compact design in which each drum is directly flanged to the output shaft of the gear reducer. Lighter and simpler, it is the preferred choice for modern cranes. It reduces the complexity of crane maintenance and improves the operational efficiency of high-quality wire rope drums for hoisting units.

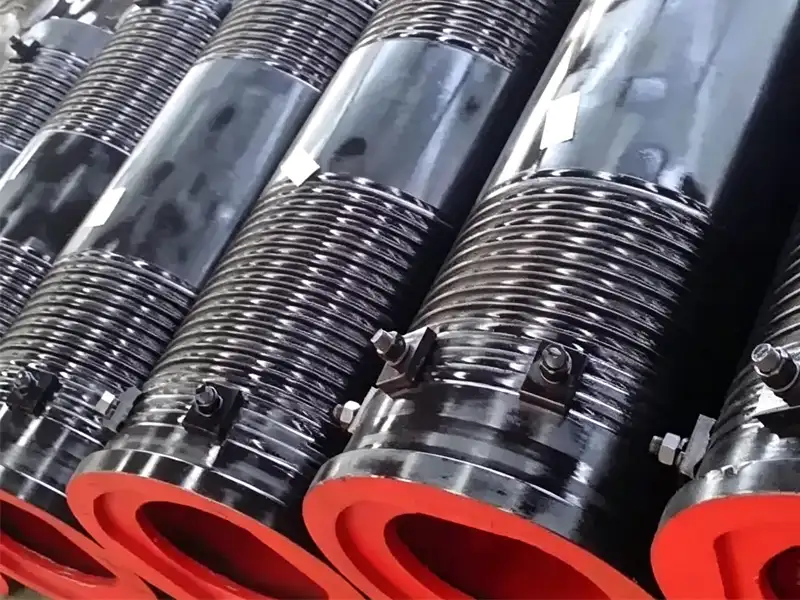

Cast Drum
A traditional method using cast steel (such as the ZG series) or cast iron (such as HT200). Suitable for complex shapes, but these drums are heavy and may have casting defects. Our cast iron rope drum options are ideal for standard applications with moderate load requirements.

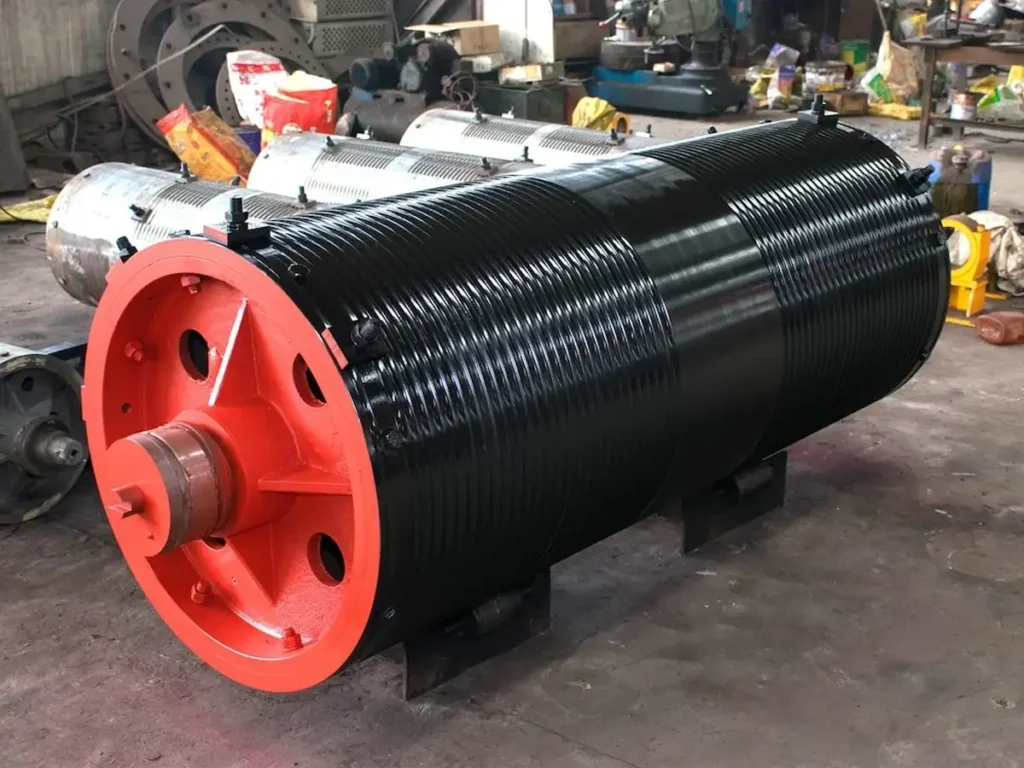

Welded Rope Drum
A modern method using rolled steel plates (such as Q235B, Q345B, or Q355 steel). These drums are lighter, stronger, and offer more consistent quality, making them widely used in medium- and large-sized cranes. As a leading manufacturer and exporter of crane wire rope drums, Glory Rail specializes in precision-welded rope drums that undergo 100% ultrasonic testing (UT).
Welded vs Cast Crane Drums
| Comparison Feature | Welded Drums | Cast Drums |
|---|---|---|
| Manufacturing & Materials | Rolled from Q235B, Q345B, and Q355 steel plates and automatically welded; fast processing and flexible production. | Cast as a single piece from gray cast iron, ductile iron, or cast steel; seamless, monolithic construction, similar to a traditional cast iron rope drum. |
| Structure & Machining | Features a dense, uniform rolled structure, with precise grooves and bore holes achieved through precision CNC lathe machining. | Casting may result in shrinkage cavities, porosity, or segregation; rough surfaces require additional machining to achieve the required groove surface hardness. |
| Weight & Efficiency | Lighter weight for the same specifications, reducing the crane’s total load and operational energy consumption, which helps lower crane maintenance costs. | Thicker wall thicknesses increase machine load and energy consumption, and may lead to increased long-term crane maintenance requirements. |
| Customization & Delivery | Diameter, length, and wall thickness are flexibly adjustable; production can begin immediately after cutting, resulting in short delivery lead times. Ideal for custom large-diameter steel plate rope drum requirements. | Customization is limited by mold costs; mold fabrication, casting, and aging treatment extend delivery times, making this unsuitable for custom large-diameter steel plate rope drum projects. |
| Cost & Best Use | Cost-effective for single-piece, small-batch, custom, metallurgical, or special applications; meets strict metallurgical crane rope drum specifications. | Economical for standardized high-volume production, but costs are higher for small batches. Not well-suited for specialized wire rope drum applications. |
Welded drums are ideal for small-batch, custom, and specialized crane applications, while cast drums are better suited for standardized, high-volume production. As a professional manufacturer and exporter of crane wire rope drums, Glory Rail recommends using welded drums in most heavy-duty applications to extend wire rope life with hardened drums and reduce total cost of ownership.
Customization Capabilities

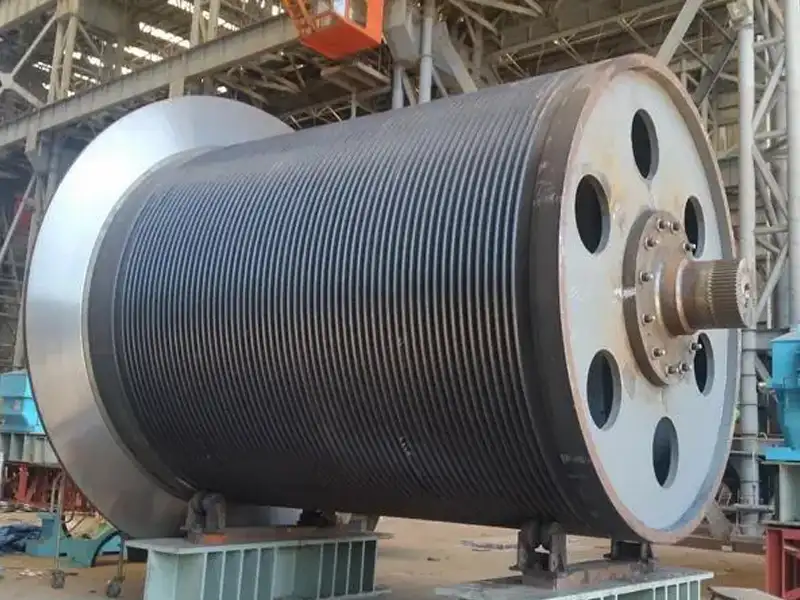

As an experienced manufacturer and exporter of crane wire rope drums, Glory Rail specializes in custom-made solutions. Whether you need custom large-diameter steel plate rope drums for port cranes, specific spiral groove pitches (standard C1 or deep-groove C2), or multi-layer wound flange guide plates (height > 1.5 times the wire rope diameter), our engineering team will provide optimized drawings based on your exact load and lifting height requirements.
Customization Options:
✓ Diameter Range: 300 mm – 3,000 mm or larger upon request
✓ Material Options: Q235B / Q345B / Q355 steel, 45# steel, or ductile iron
✓ Hardness Level: HRC 45–55 (standard) or 55–60+ (optional) HRC 45–55
✓ Groove Design: Standard C1, deep groove C2, or custom pitch
✓ Shaft Configuration: Long-shaft or short-shaft design
Standard Crane Drum Specifications & Selection Guide
Selecting the right crane rope drums is crucial for safe and efficient hoisting operations. The table below shows the dimensions and specifications of our standard wire rope drums, covering lifting capacities from 3.2 to 20 metric tons and drum diameters ranging from φ300 mm to φ1000 mm. These high-quality wire rope drums for hoisting units are manufactured from premium Q235B, Q345B, and Q355 steel. They are precision-machined using CNC lathes and undergo heat treatment to achieve optimal groove surface hardness (standard HRC 45–55, optional 55–60+), thereby extending wire rope life with hardened drums.
For applications that fall outside these standards—such as requirements for custom large-diameter steel plate rope drums or special metallurgical crane rope drum specifications—our engineering team provides fully customized solutions.
| Dimension (mm) | Lifting Capacity (ton) | Pulley Ratio | Screw Pitch (mm) | Lifting Height (m) | Approximate Weight (kg) |
|---|---|---|---|---|---|
| φ300*1000 | 3.2 | 1 | 14 | 27 | 264 |
| φ400*1000 | 5 | 2 | 16 | 15 | 340 |
| φ400*1500 | 10 | 3 | 16 | 16 | 456 |
| φ400*2000 | 5 | 2 | 16 | 36 | 564 |
| φ400*2000 | 10 | 3 | 16 | 23 | 564 |
| φ500*1500 | 10 | 1 | 28 | 27 | 908 |
| φ500*1500 | 20 | 4 | 20 | 12 | 788 |
| φ500*2000 | 15 | 3 | 20 | 22 | 972 |
| φ500*2500 | 20 | 4 | 20 | 22 | 1164 |
| φ500*3000 | 20 | 4 | 20 | 27 | 1326 |
| φ650*2500 | 32 | 4 | 24 | 23 | 1777 |
| φ650*3000 | 32 | 4 | 24 | 28 | 2154 |
| φ800*2500 | 50 | 5 | 28 | 18 | 2821 |
| φ800*3000 | 50 | 5 | 28 | 23 | 3370 |
| φ800*3340 | 75 | 5 | 32 | 20 | 4094 |
| φ1000*2000 | 50 | 5 | 28 | 18 | 2589 |
| φ1000*2500 | 50 | 5 | 28 | 22 | 3038 |
| φ1000*3000 | 50 | 5 | 28 | 28 | 3479 |
| φ1000*3670 | 100 | 6 | 36 | 22 | 9141 |
Don’t See Your Exact Specifications?
As a professional manufacturer and exporter of crane wire rope drums, Glory Rail specializes in custom solutions. Whether you need custom large-diameter steel plate rope drums, specific groove surface hardness requirements, or comprehensive support for crane rope drum replacement and maintenance, our engineering team is here to assist you.
Examples Of Our Wire Rope Drum Photos
Want to See More Examples or Need Custom Solutions?
As an experienced manufacturer and exporter of crane wire rope drums, Glory Rail can produce crane drums of any size, material, or specification. From standard cast iron rope drums to custom large-diameter steel plate rope drums, we use precision CNC lathe machining and advanced heat treatment to provide high-quality wire rope drums for hoisting units.
CLIENTS we’ve worked with
Seamless Cooperation from Inquiry to Delivery
As a professional crane wire rope drums manufacturer and exporter, Glory Rail makes the procurement process simple, transparent, and efficient.
1. Submit Requirements
Share your lifting capacity, rope diameter, or drawings for a custom large diameter steel plate rope drum.
2. Engineering Review
Our experts provide optimized CAD drawings and technical specs within 24 hours to meet metallurgical crane rope drum specifications.
3. Transparent Manufacturing
We keep you updated with production photos and 100% UT testing reports during CNC Lathe Machining and heat treatment.
4. Safe Delivery
Rigorous quality control and export-standard packaging ensure your crane drums arrive ready for installation to extend wire rope life.
